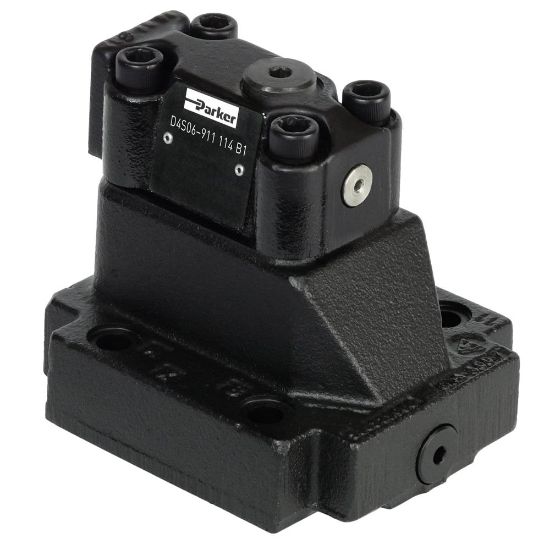

D4S06911144B1

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 80 days
Partner Available:	Backordered

SKU D4S06911144B1

$2,399.04/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	360 lpm
Minimum Opening Pressure	A-B 2.2 bar	Port Connection	NG25 / ISO 6264
Pilot Inlet / Drain Locations	Pilot line body: Internal from A (A-X orifice 1.2 / B-Y open)	For Fluid Type	Hydraulic Oil
Material	Cast Iron	Pilot Inlet	Pilot Line Body: Internal from A (A-X Orifice 1.2 / B-Y Open)
Cover	Pilot line Cap: Standard, Pilot Oil = Pilot Drain, X Open, Y Closed, Z Orifice 1.2, X-Y Open, Y1 Closed	Mounting Option	Subplate
Maximum Operating Temperature	60 °C	Minimum Operating Temperature	-20 °C
Mounting Position	Unrestricted	Spool Type	Poppet with Closed Bottom, 45° Chamfer
Product Series	Check Valve	Sleeve Type	AA=0.95 AC, AB=0.05 AC
Seal Material	NBR	Actuation Type	Solenoid
