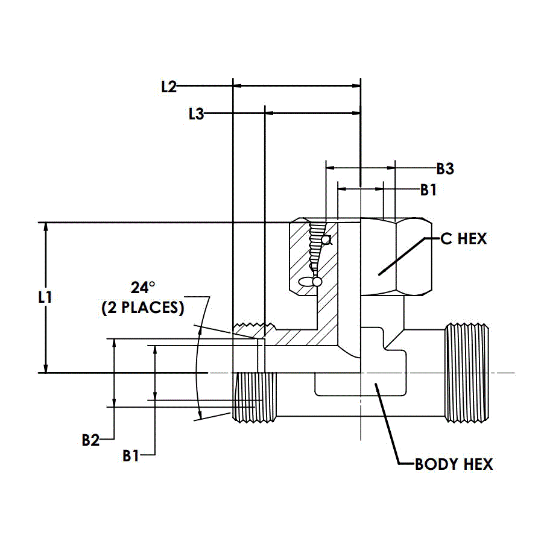

D6600-S16-S16-S16-X

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D6600-S16-S16-S16-X

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Type	Tee	Connection Type	MBT-MBT-FMS (Body Only)
Weight	0.410 LB	Series	D6600-X
Style	DIN Fitting	Hex Size 1	30 MM
Thread Size 2	M24 x 1.5	Standard	Prop-65 Warning
Max. Dynamic Pressure	630 Bar	Connection Specification 1	DIN 2353, ISO 8434-1
Connection Specification 3	DIN 2353, ISO 8434-1	Overall Length 1	33 MM
End Type 3	Female Metric Swivel DIN 24deg	Connection Specification 2	DIN 2353, ISO 8434-1
End Type 1	Male Metric 24 Degree DIN Seat	Tube Size 2	16 MM
Overall Length 2	33 MM	Plating	Zinc Nickel
Tube Size 1	16 MM	O-Ring/Seal Material	NBR
Raw Material Type	Steel Forging	Tube Size 3	16 MM
Body Hex	24 MM	Thread Size 1	M24 x 1.5
Overall Length 3	24.5 MM	Thread Size 3	M24 x 1.5
End Type 2	Male Metric 24 Degree DIN Seat
