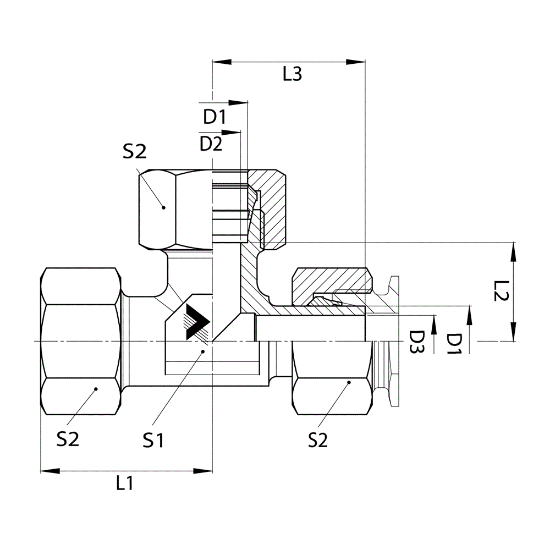

D6602-SP-S14-S14-S14-SS

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D6602-SP-S14-S14-S14-SS

Products specifications

Attribute name	Attribute value
Hex Size 1	27 MM	Max. Dynamic Pressure	400 Bar
Weight	0.872 LB	Style	DIN Fitting
Series	D6602-SP	Material	Stainless Steel
Standard	Prop-65 Warning	Thread Size 2	M22 x 1.5
Connection Type	MBT-FMSP-MBT	Connection Specification 1	DIN 2353, ISO 8434-1
Type	Tee	End Type 1	DIN Metric Tube Compression
Raw Material Type	Stainless Steel Forging	Tube Size 1	14 MM
Tube Size 2	14 MM	Overall Length 3	30 MM
Hex Size 2	27 MM	Thread Size 3	HEAVY 14MM TUBE OD
Overall Length 1	40 MM	End Type 2	Female Metric Standpipe DIN24D
Connection Specification 2	DIN 2353, ISO 8434-1	End Type 3	DIN Metric Tube Compression
Connection Specification 3	DIN 2353, ISO 8434-1	Body Hex	19 MM
Hex Size 3	27 MM	Tube Size 3	M22 x 1.5
Thread Size 1	M22 x 1.5	Overall Length 2	35 MM
