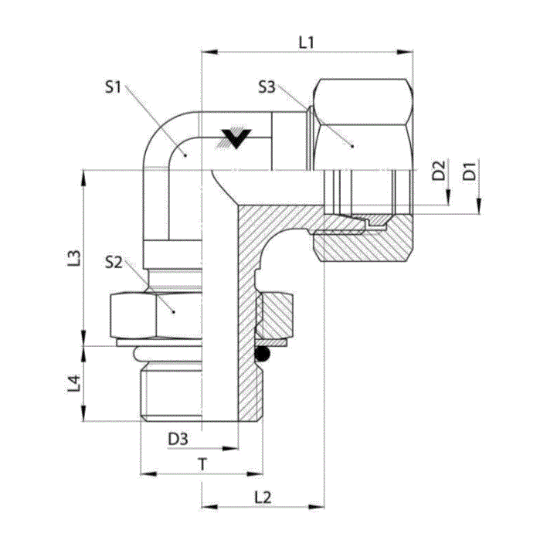

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D6801-L10-06-NWO

Brennan D6801-L10-06-NWO | Elbow | Series D6801-NWO | Connection 1 Type DIN metric tube compression | Connection 2 Type Male SAE Adjustable O-Ring Boss

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D6801-L10-06-NWO

Products specifications

Attribute name	Attribute value
UOM	EA	Series	D6801-NWO
Material	Steel	Shape	90 Degree Elbow
Connection 1 Specification	DIN 2353, ISO 8434-1	Type	Elbow
Connection 2 Specification	SAE J514	Connection 2 Type	Male SAE Adjustable O-Ring Boss
Connection 1 Thread Size	M16X1.5	Connection 1 Type	DIN metric tube compression
Connection 2 Thread Size	9/16-18 UNF	Connection 1 Tube Size	Light 10 mm Tube OD
O-Ring/Seal Material	NBR	Plating	Zinc Nickel
Raw Material Type	Steel Forging
