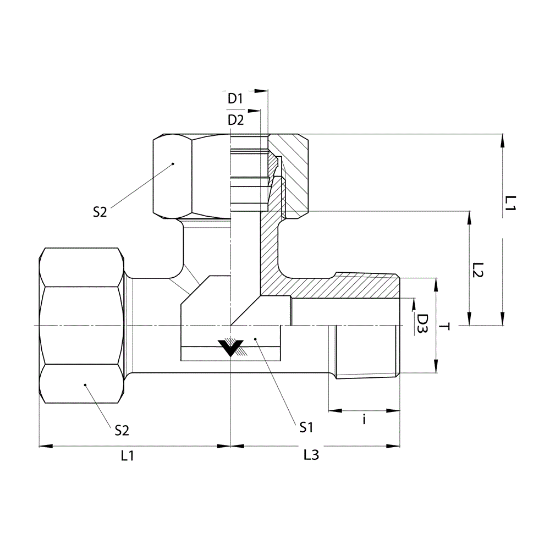

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D7605-L08-04-L08-SS

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D7605-L08-04-L08-SS

Products specifications

Attribute name	Attribute value
UOM	EA	Series	D7605
Weight	0.178 LB	Max. Dynamic Pressure	315 Bar
Standard	Prop-65 Warning	Hex Size 1	17 MM
Thread Size 2	1/4-19	Connection Specification 1	DIN 2353, ISO 8434-1
Style	DIN Fitting	Connection Specification 2	ISO 7-1, DIN EN 10226-1
Tube Size 3	8 MM	Thread Size 3	M14 x 1.5
Connection Specification 3	DIN 2353, ISO 8434-1	End Type 3	DIN Metric Tube Compression
Body Hex	12 MM	Tube Size 1	8 MM
Raw Material Type	Stainless Steel Forging	Thread ID	6 MM
Hex Size 2	17 MM	End Type 2	Male BSPT (R)
Thread Size 1	M14 x 1.5	End Type 1	DIN Metric Tube Compression
