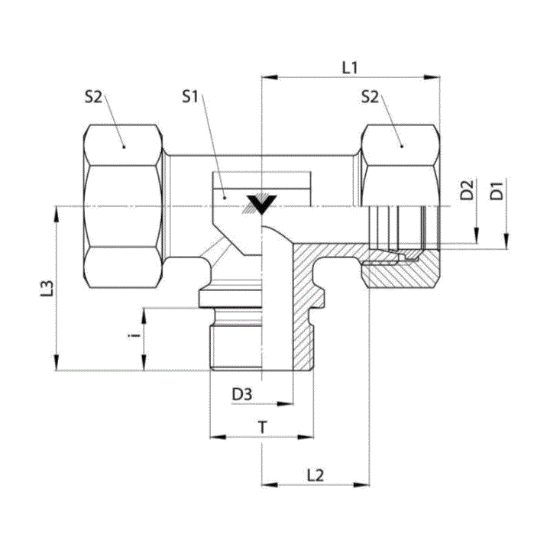

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D7803-L22-L22-12-CF-SS

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D7803-L22-L22-12-CF-SS

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	0.989 LB
Connection Specification 1	DIN 2353, ISO 8434-1	Style	DIN Fitting
Hex Size 1	36 MM	Series	D7803-CF
Thread Size 2	M30 x 2.0	Standard	Prop-65 Warning
Max. Dynamic Pressure	160 Bar	Connection Specification 3	DIN 3852-2 Form B
Thread Size 1	M30 x 2.0	End Type 1	DIN Metric Tube Compression
Raw Material Type	Stainless Steel Forging	Tube Size 2	22 MM
Body Hex	27 MM	Thread ID	18 MM
End Type 3	Male BSPP Form B	Thread Size 3	3/4-14
Connection Specification 2	DIN 2353, ISO 8434-1	Hex Size 2	36 MM
End Type 2	DIN Metric Tube Compression	Tube Size 1	22 MM
