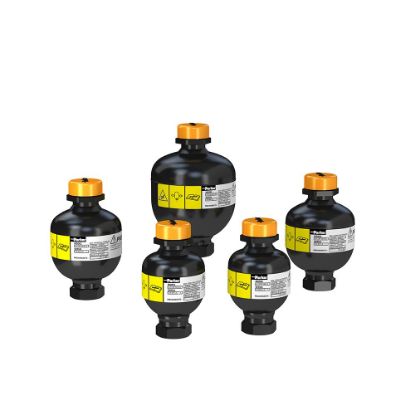

Diaphragm Accumulators - AD Series - (Americas)
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker is the leading manufacturer of accumulators in the world. Parker’s broad standard offering includes the full range of piston, bladder and diaphragm accumulators. For your convenience, Parker offers the premier accumulator sizing technology with its inPHorm Accumulator Sizing and Selection Software.
Markets:
• Aerial Lift Equipment
• Agriculture Machinery
• Construction Equipment
• Forestry Equipment
• Mining Equipment
• Hybrid Vehicle Systems
• Material Handling Equipment
• Transportation
• Turf Equipment
• Vocational Equipment and Special Use Work Vehicles
• Hydraulic Power Units (HPU)
• Lubrication Systems
• Plastics Machinery
• Injection Molding Equipment
• Rubber Molding Equipment
Features/Benefits:
• Operating Pressures up to 250 bar (3625 psi)
• Capacities from .075 to 2.80 Liters (5 to 170 cu in)
• Compact and Lightweight
• Welded, Non-Repairable Design offers great tolerance to environmental contamination
• Hydrin Diaphragms
• US and Metric Gas Valve options
• Affordable design
• Good response characteristics
• Works well with water and low lubricity fluids
Applications:
• Shock Absorption
• Auxiliary Power
• Supplemental Flow
• Noise Attenuation
• Energy Conservation
• Thermal Expansion
• Emergency Power
• Leakage Compensation
Read More...Markets:
• Aerial Lift Equipment
• Agriculture Machinery
• Construction Equipment
• Forestry Equipment
• Mining Equipment
• Hybrid Vehicle Systems
• Material Handling Equipment
• Transportation
• Turf Equipment
• Vocational Equipment and Special Use Work Vehicles
• Hydraulic Power Units (HPU)
• Lubrication Systems
• Plastics Machinery
• Injection Molding Equipment
• Rubber Molding Equipment
Features/Benefits:
• Operating Pressures up to 250 bar (3625 psi)
• Capacities from .075 to 2.80 Liters (5 to 170 cu in)
• Compact and Lightweight
• Welded, Non-Repairable Design offers great tolerance to environmental contamination
• Hydrin Diaphragms
• US and Metric Gas Valve options
• Affordable design
• Good response characteristics
• Works well with water and low lubricity fluids
Applications:
• Shock Absorption
• Auxiliary Power
• Supplemental Flow
• Noise Attenuation
• Energy Conservation
• Thermal Expansion
• Emergency Power
• Leakage Compensation
| Action | SKU | Availability | Partner Available | Price | UOM | Valve Type | Nominal Volume (l) | Maximum Operating Pressure | Height | Weight | Port Type | Body Material | Specifications Met | Maximum Flow Rate | Diameter | Gas Volume | Repairable | Compression Ratio | Diaphragm Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AD007A25T9A1 | Backordered | Backordered | $392.60/each | EA | M28x1.5 Metric Gas Valve | 0.07 l | 3625 psi | 4.37 inch | 1.8 lbs | SAE #6 (9/16-18 UNF) Female | High Strength Alloy Steel | Consult Factory | 40 L/min | 2.52 inch | 5 inch3 | Non-Repairable | 8:1 | Hydrin | |
| AD007B25T9A1 | Backordered | Backordered | $563.85/each | EA | US Style Gas Valve (ISO 4570-8VI) | 0.07 l | 250 bar | 111 mm | 1.8 lbs | SAE #6 (9/16-18 UNF) Female | High Strength Alloy Steel | Consult Factory | 40 L/min | 2.52 inch | 5 inch3 | Non-Repairable | 8:1 | Hydrin | |
| AD016A25T9A1 | Backordered | Backordered | $449.70/each | EA | M28x1.5 Metric Gas Valve | 0.16 l | 3625 psi | 4.72 inch | 2.2 lbs | SAE #6 (9/16-18 UNF) Female | High Strength Alloy Steel | Consult Factory | 11 Gal/min | 75 mm | 10 inch3 | Non-Repairable | 8:1 | Hydrin | |
| AD016B25T9A1 | Backordered | Backordered | $620.95/each | EA | US Style Gas Valve (ISO 4570-8VI) | 0.16 l | 3625 psi | 4.72 inch | 1 kg | SAE #6 (9/16-18 UNF) Female | High Strength Alloy Steel | Consult Factory | 11 Gal/min | 75 mm | 0.16 L | Non-Repairable | 8:1 | Hydrin | |
| AD032A21T9A1 | 1 Limited Stock | Backordered | $497.30/each | EA | M28x1.5 Metric Gas Valve | 0.32 l | 3000 psi | 5.55 inch | 4 lbs | SAE #8 (3/4-16 UNF) Female | High Strength Alloy Steel | Consult Factory | 100 L/min | 3.74 inch | 20 inch3 | Non-Repairable | 8:1 | Hydrin | |
| AD032B21T9A1 | Backordered | Backordered | $668.60/each | EA | US Style Gas Valve (ISO 4570-8VI) | 0.32 l | 3000 psi | 5.55 inch | 1.8 kg | SAE #8 (3/4-16 UNF) Female | High Strength Alloy Steel | Consult Factory | 26 Gal/min | 95 mm | 20 inch3 | Non-Repairable | 8:1 | Hydrin | |
| AD050A21T9A1 | Backordered | Backordered | $572.25/each | EA | M28x1.5 Metric Gas Valve | 0.50 l | 210 bar | 5.94 inch | 2.1 kg | SAE #8 (3/4-16 UNF) Female | High Strength Alloy Steel | Consult Factory | 100 L/min | 4.20 inch | 30 inch3 | Non-Repairable | 8:1 | Hydrin | |
| AD050B21T9A1 | Backordered | Backordered | $743.55/each | EA | US Style Gas Valve (ISO 4570-8VI) | 0.50 l | 210 | 151 | 2.1 | SAE #8 (3/4-16 UNF) Female | High Strength Alloy Steel | Consult Factory | 100 | 107 | 0.5 | Non-Repairable | 8:1 | Hydrin | |
| AD075A25T9A1 | Backordered | Backordered | $734.00/each | EA | M28x1.5 Metric Gas Valve | 0.75 l | 250 bar | 169 mm | 6.6 lbs | SAE #8 (3/4-16 UNF) Female | High Strength Alloy Steel | Consult Factory | 100 L/min | 4.87 inch | 45 inch3 | Non-Repairable | 8:1 | Hydrin | |
| AD075B25T9A1 | Backordered | Backordered | $905.35/each | EA | US Style Gas Valve (ISO 4570-8VI) | 0.75 l | 250 | 169 | 3.0 | SAE #8 (3/4-16 UNF) Female | High Strength Alloy Steel | Consult Factory | 100 | 124 | 0.75 | Non-Repairable | 8:1 | Hydrin | |
| AD100A21T9A1 | Backordered | Backordered | $938.60/each | EA | M28x1.5 Metric Gas Valve | 1.00 l | 210 bar | 7.09 inch | 8.8 lbs | SAE #8 (3/4-16 UNF) Female | High Strength Alloy Steel | Consult Factory | 26 Gal/min | 5.36 inch | 1 L | Non-Repairable | 8:1 | Hydrin | |
| AD100B21T9A1 | Backordered | Backordered | $1,109.95/each | EA | US Style Gas Valve (ISO 4570-8VI) | 1.00 l | 210 bar | 180 mm | 8.8 lbs | SAE #8 (3/4-16 UNF) Female | High Strength Alloy Steel | Consult Factory | 26 Gal/min | 5.36 inch | 1 L | Non-Repairable | 8:1 | Hydrin | |
| AD140A25T9A1 | Backordered | Backordered | $1,104.00/each | EA | M28x1.5 Metric Gas Valve | 1.40 l | 250 bar | 7.80 inch | 6 kg | SAE #8 (3/4-16 UNF) Female | High Strength Alloy Steel | CE (for others consult factory) | 26 Gal/min | 6.10 inch | 85 inch3 | Non-Repairable | 8:1 | Hydrin | |
| AD140B25T9A1 | Backordered | Backordered | $1,275.30/each | EA | US Style Gas Valve (ISO 4570-8VI) | 1.40 l | 250 | 198 | 6 | SAE #8 (3/4-16 UNF) Female | High Strength Alloy Steel | CE (for others consult factory) | 100 | 155 | 1.4 | Non-Repairable | 8:1 | Hydrin | |
| AD200A25T9A1 | Backordered | Backordered | $1,403.80/each | EA | M28x1.5 Metric Gas Valve | 2.00 l | 250 bar | 9.88 inch | 7.5 kg | SAE #8 (3/4-16 UNF) Female | High Strength Alloy Steel | CE (for others consult factory) | 160 L/min | 6.10 inch | 2 L | Non-Repairable | 4:1 | Hydrin | |
| AD200B25T9A1 | Backordered | Backordered | $1,575.05/each | EA | US Style Gas Valve (ISO 4570-8VI) | 2.00 l | 3625 psi | 9.88 inch | 17 lbs | SAE #8 (3/4-16 UNF) Female | High Strength Alloy Steel | CE (for others consult factory) | 42 Gal/min | 155 mm | 120 inch3 | Non-Repairable | 4:1 | Hydrin | |
| AD280A25T9A1 | Backordered | Backordered | $1,631.00/each | EA | M28x1.5 Metric Gas Valve | 2.80 l | 250 | 268 | 10.0 | SAE #8 (3/4-16 UNF) Female | High Strength Alloy Steel | CE (for others consult factory) | 160 | 174 | 2.8 | Non-Repairable | 4:1 | Hydrin | |
| AD280B25T9A1 | Backordered | Backordered | $1,802.35/each | EA | US Style Gas Valve (ISO 4570-8VI) | 2.80 l | 250 bar | 268 mm | 10.0 kg | SAE #8 (3/4-16 UNF) Female | High Strength Alloy Steel | CE (for others consult factory) | 160 L/min | 6.85 inch | 2.8 L | Non-Repairable | 4:1 | Hydrin |
