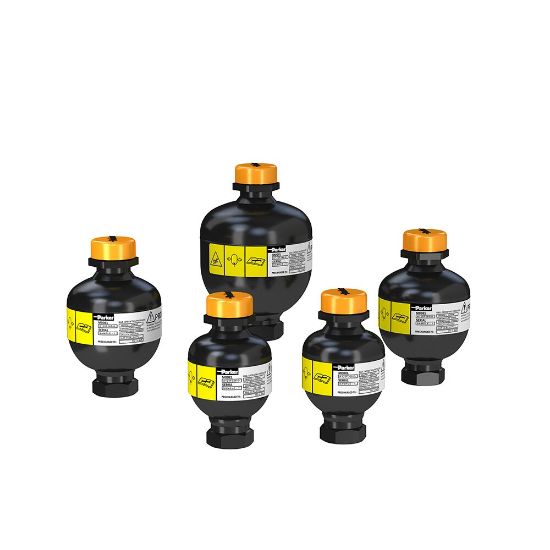

AD032A21T9A1 - Diaphragm Accumulators - AD Series - (Americas)

Name: AD032A21T9A1 - Diaphragm Accumulators - AD Series - (Americas)
SKU: AD032A21T9A1
Price: 497.30 USD
Availability: LimitedAvailability

Diaphragm accumulators provide an affordable means of storing energy under pressure, absorbing hydraulic shocks, dampening pump pulsation/flow fluctuations. They provide dependable performance in a lightweight, compact design.

Availability:

1 Limited Stock

Olivette, MO

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU AD032A21T9A1

$497.30/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Valve Type	M28x1.5 Metric Gas Valve
Nominal Volume (l)	0.32 l	Maximum Operating Pressure	3000 psi
Maximum Flow Rate	100 L/min	Height	5.55 inch
Weight	4 lbs	Port Type	SAE #8 (3/4-16 UNF) Female
Body Material	High Strength Alloy Steel	Specifications Met	Consult Factory
Diameter	3.74 inch	Gas Volume	20 inch3
Repairable	Non-Repairable	Compression Ratio	8:1
Diaphragm Material	Hydrin
