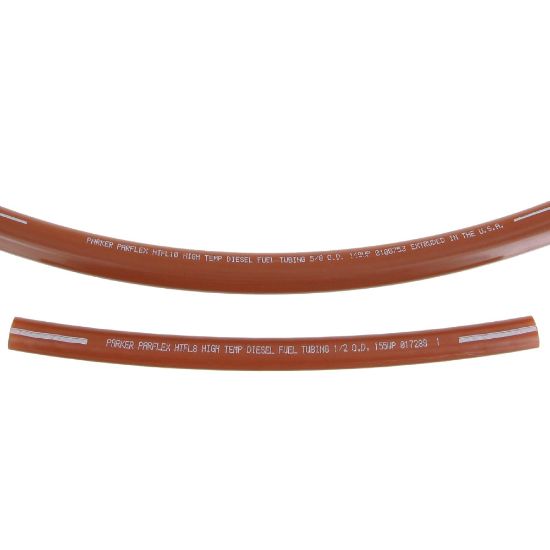

HTFL-8B-BRN-500 - Diesel Fuel Tubing

Parker's Nylon Diesel Fuel Tubing - HTFL & PFT diesel fuel line tubing is heat and light stabilized, quality controlled and pressure tested for superior performance.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	532 in stock

SKU HTFL-8B-BRN-500

$3.64/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Product Style	HTFL - Temp. up to 266˚F (130˚C)
Order Size	1/2	Minimum Operating Temperature	-50 °F
Tube Outside Diameter	1/2 inch	Maximum Operating Pressure	10.7 bar
Length per Package	152.4 m	Minimum Burst Pressure	950 psi
Tube Inside Diameter	0.376 inch	Media	Fuels (Diesel)
Compatible Fitting	NTA®	Size	-8
Specifications Met	MIL-DTL-83133 HTFL Tubing Compatible with JP-5 and JP-8	Tube Material	Polyamide (PA)
Cover Color	Brown	Cover Material	Polyamide (PA)
Minimum Bend Radius	2 inch	Weight	0.058 kg/m
Maximum Operating Temperature	266 °F	Color	Brown
