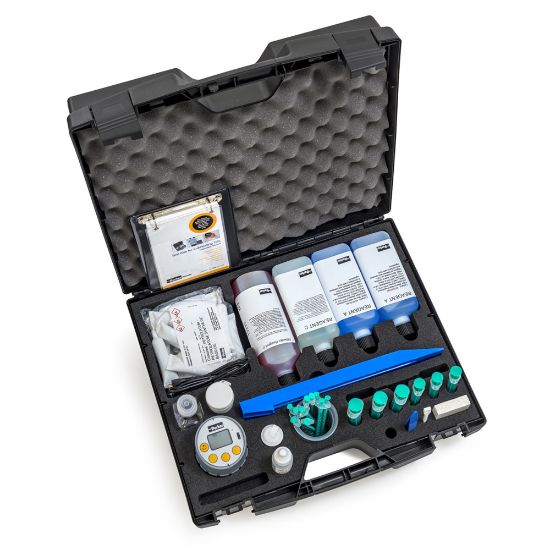

Picture of DIGI Plus Oil Test Kits - FG-K3-020-KW

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

DIGI Plus Oil Test Kits - FG-K3-020-KW

The DIGI+ range of test kits enable rapid on-site monioring of critical oil parameters in remote and marine applications, including base number, acid number, viscosity comparison, plus water, salt and insoluble contamination.
Availability:
Backordered
SKU FG-K3-020-KW
$339.91
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAOptionsViscosity (Lube Oil)
FunctionViscosityConnection Typen/a. Manually fed samples
IndustryTransportationCommunication InterfaceDisplay with backlight and keypad. Computer interface application.
Signal OutputDisplay computer measurement memory download and setup interfaceDivisionHydraulic & Industrial Process Filtration Division EMEA
Flow Raten/a. Manually fed samplesSensor ConnectionMicro-USB
Operating Pressuren/a. Manually fed samplesBrandPARKER
TechnologyFiltrationSize76 x 112 mm (Diameter x Height)
DivisionHydraulic & Industrial Process Filtration Division EMEAFor Fluid TypeMineral and synthetic fluids compatible: Lubricant oils, hydraulic oils, distillate fuels, and Bio-based fuels.
Sensing MethodElectrical sense elementAccessories IncludedCarry case, syringes, reagents, goggles, instructions, 50 tests.
Cycle TimeWater-in-oil: 180 seconds<br/>Base number: 120 secondsAccuracyWater-in-oil: 0.1% up to 1%, then  ± 1% above 1%<br/>Base number: ± 5 BN or 10 % (whichever is greater)
Wetted MaterialFKM and glass reinforced plasticElectrical RequirementsInternal USB rechargeable battery (micro-USB: 5 V 100 mA minimum)
Product TypeCondition MonitoringSensing RangeWater-in-oil: 0.02% to 1%, 0.1% to 10%, 0.1% to 20%, 200 ppm to 10000 ppm, 100 ppm to 300 ppm<br/>Base number: 1 to 150 BN
Weight0.2Ingress Protection RatingIP44
FeaturesFast and effective onsite/Onboard test to measure water-in-oil and/or BN (base number) Operating Temperature10 to 45 °C Ambient
Product resources

Literature and Reference Materials
