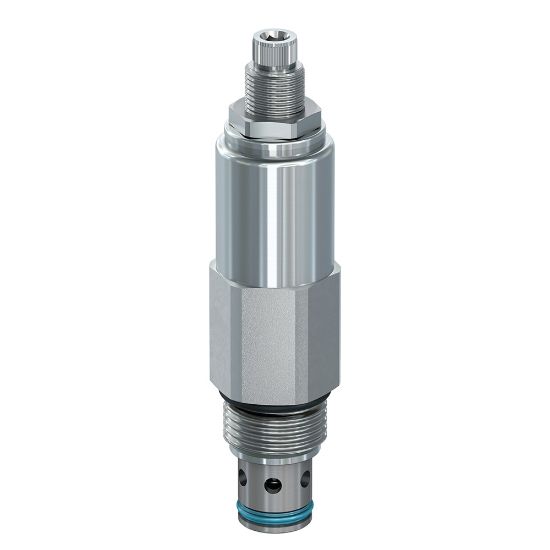

RDH103T50V - Direct Acting Differential Area Relief Valves

Parker’s direct acting differential area relief valves are for fast response intermittent applications and work up to 380 bar (5500 psi) and 151 lpm (40 gpm). These valves have lower leakage rates and pressure rise than standard direct acting reliefs.

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU RDH103T50V

$64.60/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Adjustment Mechanism	Tamper Resistant	Mounting Type	Screw in cartridge valve
Cracking Pressure	N/A	Flow Rate	20 GAL/MIN, 75 L/MIN
Maximum Inlet Pressure Rating	5500 PSI, 380 BAR	Pressure Control Range	500-5000 PSI, 34.5-350 BAR
Standard Setting Pressure	2500 PSI, 172 BAR	Seal Material	Fluorocarbon
Body Material	n/a	Maximum Operating Pressure	5500 psi
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-26 °C
Weight	0.5 lb	Function	Direct Acting
Actuation Type	Pressure Sensing	Operation Type	Automatic
Adjustment Mechanism	Tamper Resistant	Cavity Size	C10-2
Maximum Tank Pressure	5000 psi	Maximum Pressure Setting	5000 psi
Port Thread Size	n/a	Maximum Flow Rate	20 Gal/min
Maximum Inlet Pressure Rating	380 bar	Maximum Operating Temperature	+204 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Mounting Type	Screw in cartridge valve
Flow Rate	20 Gal/min	Installation Torque	51-55 lb-ft
Cracking Pressure	N/A psi	Standard Setting Pressure	172 bar
Leak Rate	5 @ 75% Crack Pressure drops/min	Configuration	Differential Area Relief, Differential Relief w/Reverse Flow Check
Reseat Pressure	85% of pressure setting	Pressure Control Range	138-350 bar
Minimum Operating Pressure	380 bar	Pressure Control Sensitivity	589 per turn psi
