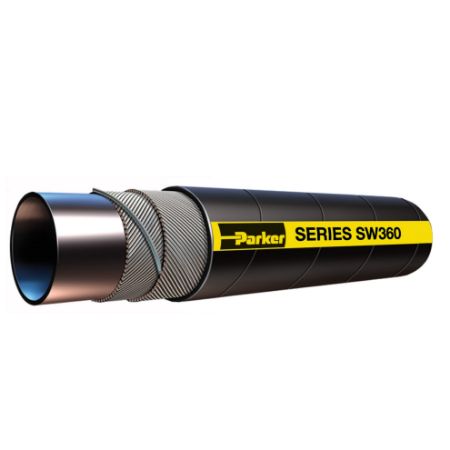

DRAGON BREATH® HOT AIR HOSE, SERIES SW360
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's Series SW360 Dragon Breath®Hot Air Hose provides excellent medium pressure, heavy duty service for transferring hot air from a compressor to a storage bin/cargo bay to efficiently agitate, mix, disgorge and propel bulk dry material products. The hose provides kink resistance and flexibility, making the hose easy to handle, and the specially formulated rubber compounds keep the hose from drying out, cracking and prematurely failing to provide maximum performance.
Markets:
• Agriculture
• General Industrial
• Transportation
Features/Benefits:
• Tube: Black EPDM for high temperature compatibility to 350°F.
• Reinforcement: Multiple textile plies for strength and durability, and a wire helix for full suction capability and a path to conduct a static charge to ground.
• Cover: Black EPDM for resistance to abrasion, heat and weathering.
• Couplings: Qualified with steel crimp couplings for a durable, safe and secure connection.
Applications:
- media
• Hot air
- usage
• Hot air blower systems
• Bulk loading/unloading
• Bulk delivery/transport trucks
• In-plant transfer
Safety/Technical:
• Design Factor: 4:1
Warnings:
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines
| Action | SKU | Availability | Partner Available | Price | UOM | Maximum Working Pressure (psi) | Hose I.D. (inch) | Package Type | Hose Reinforcement Material | Minimum Bend Radius | Tube Material | Maximum Operating Temperature | Cover Material | Weight | Outside Diameter | Media | Hose Inner Tube Material | Length per Package | Cover Structure | Design Factor | Minimum Operating Temperature | Inside Diameter | Maximum Operating Pressure | Vacuum Pressure Rating | Cover Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SW360-1500 | Backordered | 28 in stock | $24.82/foot | FT | 200 | 1-1/2 | Coil | Multiple Plies of Textile with Dual Wire Helix | 127 mm | Ethylene Propylene Diene Monomer (EPDM) | 350 °F | Ethylene Propylene Diene Monomer (EPDM) | 0.89 lb | 2.010 inch | Air (Hot Air) | Black | 100 ft | Wrapped | 4:1 | -40 °C | 38.1 mm | 200 psi | Full | Black | |
| SW360-2000 | Backordered | 177 in stock | $30.72/foot | FT | 200 | 2 | Coil | Multiple Plies of Textile with Dual Wire Helix | 152.4 mm | Ethylene Propylene Diene Monomer (EPDM) | 350 °F | Ethylene Propylene Diene Monomer (EPDM) | 1.08 lb | 63.5 mm | Air (Hot Air) | Black | 100 ft | Wrapped | 4:1 | -40 °F | 50.8 mm | 13.8 bar | Full | Black | |
| SW360-3000 | Backordered | 318 in stock | $36.34/foot | FT | 200 | 3 | Coil | Multiple Plies of Textile with Dual Wire Helix | 12 inch | Ethylene Propylene Diene Monomer (EPDM) | 177 °C | Ethylene Propylene Diene Monomer (EPDM) | 0.81 kg | 3.563 inch | Air (Hot Air) | Ethylene Propylene Diene Monomer (EPDM) | 100 ft | Wrapped | 4:1 | -40 °F | 76.2 mm | 13.8 bar | Full | Black | |
| SW360-4000 | Backordered | 275 in stock | $52.59/foot | FT | 125 | 4 | Coil | Multiple Plies of Textile with Dual Wire Helix | 16 inch | Ethylene Propylene Diene Monomer (EPDM) | 177 °C | Ethylene Propylene Diene Monomer (EPDM) | 1.12 kg | 4.563 inch | Air (Hot Air) | Black | 100 ft | Wrapped | 4:1 | -40 °C | 4 inch | 125 psi | Full | Black | |
| SW360-6000 | Backordered | Backordered | $98.29/foot | FT | 100 | 6 | Coil | Multiple Plies of Textile with Dual Wire Helix | 609.6 mm | Ethylene Propylene Diene Monomer (EPDM) | 350 °F | Ethylene Propylene Diene Monomer (EPDM) | 5 lb | 6.813 inch | Air (Hot Air) | Black | 100 ft | Wrapped | 4:1 | -40 °C | 152.4 mm | 100 psi | Full | Black |
