7219-0625025 - E-Z Form MP Oil Resistant Flexible Suction Hose, Multipurpose, Series 7219

Name: 7219-0625025 - E-Z Form MP Oil Resistant Flexible Suction Hose, Multipurpose, Series 7219
SKU: 7219-0625025
Price: 17.06 USD
Availability: InStock

E-Z Form MP Greek Corrugated Multipurpose Oil Resistant Suction Hose is an extremely flexible hose designed for refined fuels and oil transfer in applications to 250°F and 75 psi, Series 7219

Availability:

43 in stock

Springfield, MO

Partner Available:

136 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 7219-0625025

$17.06/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	5/8
Standard Package Quantity	25 ft	Specifications Met	N/A
Design Factor	4:1	Media	Water
Cover Color	Black	Maximum Operating Temperature	121 °C
Inside Diameter	15.9 mm	Hose Inner Tube Material	Black
Weight	0.37 lb/ft	Outside Diameter	1.1 inch
Cover Material	Chloroprene Rubber (CR)	Minimum Operating Temperature	-34 °C
Hose Reinforcement Material	2 Plies of Textile with Wire Helix	Compatible Fitting	HY
Minimum Bend Radius	32.7 mm	Vacuum Pressure Rating	737 mm-Hg
Maximum Operating Pressure	0.5 MPa

Customers who bought this item also bought

836-6-BLK-RL

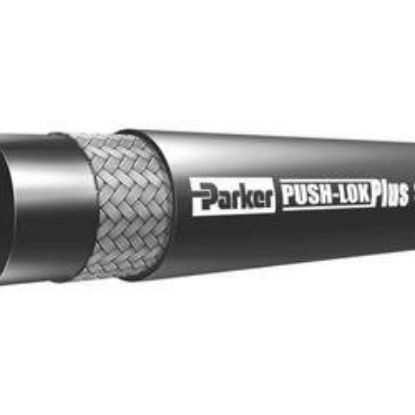

Parker 836-6-BLK-RL | Hose
