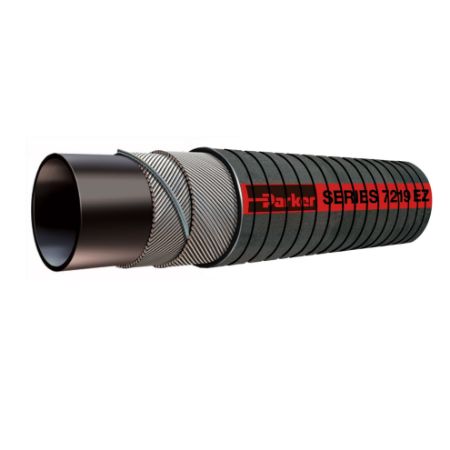

E-Z Form MP Oil Resistant Flexible Suction Hose, Multipurpose, Series 7219

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s Series 7219 E-Z Form MP Greek Corrugated Multipurpose Oil Resistant Flexible Suction Hose provides excellent service across a wide variety of low-pressure oil transfer applications that require extreme hose flexibility where tight routing is a challenge. The lightweight, Greek corrugated construction provides an economical alternative to expensive made-to-order formed hose. Series 7219 is crush resistant and kink resistant for unimpeded flow, offers superior flexibility for easy handling and installer/operator convenience, and is resistant to abrasion, oil and weathering for maximum performance in industrial suction hose applications.

Markets:

• General Industrial

• Transportation

Features/Benefits:

• Tube: Black nitrile for fuel and oil resistance to 250°F.

• Reinforcement: Multiple textile braids or plies for strength and durability, and a wire helix for full suction capability and a path to conduct a static charge to ground.

• Cover: Black chloroprene for abrasion, heat and oil resistance and durability.

• Couplings: Qualified with steel crimp couplings for a durable, safe and secure connection.

• Lengths: Available in optional 25-foot coils, 130-foot coils or 300-foot reels for application/inventory efficiency and versatility.

Applications:

• Biodiesel (to B20 in dedicated service)

• Diesel

• Ethanol

• Gasoline

• Mild chemicals

• Oil

• Drain lines

• Fuel fill connector lines

• Oil suction/return lines

• Buses

• Mobile/off-road equipment

• General transfer

Safety/Technical:

• Design Factor: 4:1

• Do not use for fuel transfer in regulated dispensing or engine service requiring API, NFPA, SAE, UL, ULC or any other agency approval or listing.

• Refer to the table in Catalog 4800 for fuel compatibility and service conditions.

• Do not drag across sharp edges or highly abrasive surfaces

• Refer to CrimpSource® for current crimp specifications.

Warnings:

• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Hose I.D. (inch)	Standard Package Quantity	Specifications Met	Design Factor	Inside Diameter	Cover Color	Minimum Operating Temperature	Maximum Operating Temperature	Maximum Operating Pressure	Hose Inner Tube Material	Media	Weight	Cover Material	Outside Diameter	Hose Reinforcement Material	Compatible Fitting	Minimum Bend Radius	Vacuum Pressure Rating
7219-0500025	10 in stock	7 in stock	$16.04/foot	FT	1/2	25 ft	N/A	4:1	1/2 inch	Black	-30 °F	121 °C	5.2 bar	Black	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	0.30 lb/ft	Chloroprene Rubber (CR)	0.900 inch	2 Plies of Textile with Wire Helix	HY	0.9 inch	29 Inch-Hg
7219-0500300	Backordered	Backordered	$12.97/foot	FT	1/2	300 ft	N/A	4:1	12.7 mm	Black	-30 °F	121 °C	5.2 bar	Black	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	0.45 kg/m	Chloroprene Rubber (CR)	23.8 mm	2 Plies of Textile with Wire Helix	HY	24.1 mm	737 mm-Hg
7219-0625025	43 in stock	136 in stock	$17.06/foot	FT	5/8	25 ft	N/A	4:1	15.9 mm	Black	-34 °C	121 °C	0.5 MPa	Black	Water	0.37 lb/ft	Chloroprene Rubber (CR)	1.1 inch	2 Plies of Textile with Wire Helix	HY	32.7 mm	737 mm-Hg
7219-0625300	Backordered	Backordered	$13.78/foot	FT	5/8	300 ft	N/A	4:1	5/8 inch	Black	-30 °F	121 °C	0.5 MPa	Black	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	0.55 kg/m	Chloroprene Rubber (CR)	1.1 inch	2 Plies of Textile with Wire Helix	HY	32.7 mm	737 mm-Hg
7219-0750025	48 in stock	1315 in stock	$17.80/foot	FT	3/4	25 ft	N/A	4:1	19.1 mm	Black	-30 °F	121 °C	0.5 MPa	Black	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	0.58 kg/m	Chloroprene Rubber (CR)	30 mm	2 Plies of Textile with Wire Helix	HY/43	36.3 mm	737 mm-Hg
7219-0750300	Backordered	1612 in stock	$14.38/foot	FT	3/4	300 ft	N/A	4:1	19.1 mm	Black	-30 °F	121 °C	75 psi	Black	Air	0.58 kg/m	Chloroprene Rubber (CR)	30 mm	2 Plies of Textile with Wire Helix	HY/43	1.4 inch	29 Inch-Hg
7219-1000025	Backordered	1891 in stock	$21.98/foot	FT	1	25 ft	N/A	4:1	1 inch	Black	-30 °F	121 °C	5.2 bar	Nitrile	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	0.69 kg/m	Chloroprene Rubber (CR)	1.400 inch	2 Plies of Textile with Wire Helix	HY/43	1.40 inch	29 Inch-Hg
7219-1000300	245 in stock	2592 in stock	$17.76/foot	FT	1	300 ft	N/A	4:1	25.4 mm	Black	-34 °C	121 °C	75 psi	Nitrile	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	0.69 kg/m	Chloroprene Rubber (CR)	1.4 inch	2 Plies of Textile with Wire Helix	HY/43	1.4 inch	29 Inch-Hg
7219-1125025	Backordered	37 in stock	$20.39/foot	FT	1-1/8	25 ft	N/A	4:1	28.6 mm	Black	-29 °C	93 °C	75 psi	Nitrile	Water	0.19 kg/ft	Chloroprene Rubber (CR)	1.496 inch	2 Plies of Textile with Wire Helix		46.5 mm	29 Inch-Hg
7219-1250025	156 in stock	1550 in stock	$28.33/foot	FT	1-1/4	25 ft	N/A	4:1	1-1/4 inch	Black	-34 °C	212 °F	75 psi	Nitrile	Air	0.75 kg/m	Chloroprene Rubber (CR)	43 mm	2 Plies of Textile with Wire Helix	HY/43	2.20 inch	737 mm-Hg
7219-1250130	61 in stock	481 in stock	$22.89/foot	FT	1-1/4	130 ft	N/A	4:1	31.8 mm	Black	-30 °F	100 °C	5.2 bar	Black	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	0.50 lb/ft	Chloroprene Rubber (CR)	43 mm	2 Plies of Textile with Wire Helix	HY/43	56.7 mm	737 mm-Hg
7219-1500025	Backordered	1078 in stock	$30.87/foot	FT	1-1/2	25 ft	N/A	4:1	1-1/2 inch	Black	-34 °C	212 °F	0.5 MPa	Nitrile	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	0.58 lb/ft	Chloroprene Rubber (CR)	1.9 inch	2 Plies of Textile with Wire Helix	43	74.1 mm	737 mm-Hg
7219-1500130	15 in stock	428 in stock	$24.94/foot	FT	1-1/2	130 ft	N/A	4:1	1-1/2 inch	Black	-30 °F	212 °F	5.2 bar	Black	Water	0.58 lb/ft	Chloroprene Rubber (CR)	49 mm	2 Plies of Textile with Wire Helix	43	74.1 mm	737 mm-Hg
7219-1625025	Backordered	7 in stock	$27.24/foot	FT	1-5/8	25 ft	N/A	4:1	41.3 mm	Black	-30 °F	100 °C	5.2 bar	Nitrile	Air	0.95 kg/m	Chloroprene Rubber (CR)	53 mm	2 Plies of Textile with Wire Helix	n/a	92.4 mm	29 Inch-Hg
7219-1750025	Backordered	13 in stock	$29.53/foot	FT	1-3/4	25 ft	N/A	4:1	44.5 mm	Black	-34 °C	212 °F	75 psi	Nitrile	Water	0.68 lb/ft	Chloroprene Rubber (CR)	56 mm	2 Plies of Textile with Wire Helix	n/a	4 inch	29 Inch-Hg
7219-2000025	7 in stock	533 in stock	$41.45/foot	FT	2	25 ft	N/A	4:1	50.8 mm	Black	-29 °C	93 °C	5.2 bar	Nitrile	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	0.96 lb/ft	Chloroprene Rubber (CR)	2.500 inch	2 Plies of Textile with Wire Helix	43	4.6 inch	737 mm-Hg
7219-2000130	Backordered	1477 in stock	$33.49/foot	FT	2	130 ft	N/A	4:1	50.8 mm	Black	-34 °C	100 °C	0.5 MPa	Nitrile	Water	1.43 kg/m	Chloroprene Rubber (CR)	63 mm	2 Plies of Textile with Wire Helix	43	4.6 inch	29 Inch-Hg
7219-2250025	Backordered	51 in stock	$38.07/foot	FT	2-1/4	25 ft	N/A	4:1	2-1/4 inch	Black	-34 °C	212 °F	5.2 bar	Black	Air	1.61 kg/m	Chloroprene Rubber (CR)	2.800 inch	2 Plies of Textile with Wire Helix	n/a	6.5 inch	29 Inch-Hg
7219-2500025	Backordered	319 in stock	$51.62/foot	FT	2-1/2	25 ft	N/A	4:1	63.5 mm	Black	-30 °F	100 °C	5.2 bar	Black	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	1.17 lb/ft	Chloroprene Rubber (CR)	76.5 mm	2 Plies of Textile with Wire Helix	n/a	182.5 mm	29 Inch-Hg
7219-2500130	Backordered	282 in stock	$41.70/foot	FT	2-1/2	130 ft	N/A	4:1	2-1/2 inch	Black	-34 °C	212 °F	5.2 bar	Black	Water	1.17 lb/ft	Chloroprene Rubber (CR)	76.5 mm	2 Plies of Textile with Wire Helix	n/a	7.2 inch	737 mm-Hg
