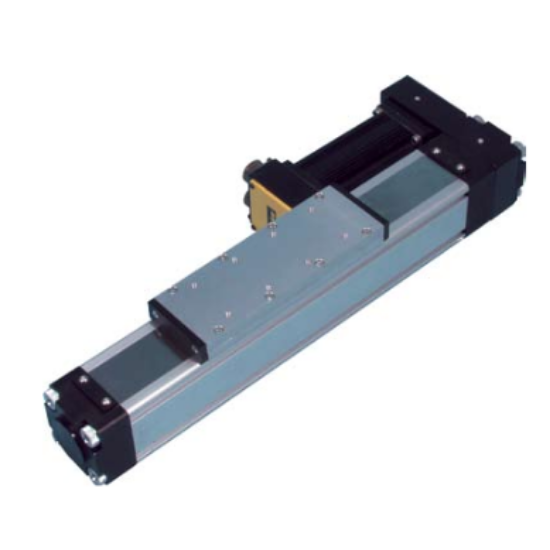

ER050B02QA000E00FSSN0750A

Automated linear motion can have a variety of requirements. Increasingly, programmability, high repeatability, and simplicity of design are among them. The ER Series from Parker Hannifin's Actuator Division was designed to provide a solution to a variety of linear motion applications by offering a low cost, modular design electric rodless actuator. The ER Series is available in three profile sizes as a belt-driven, Acme screw-driven or ball screw-driven unit. The load-bearing carriage is supported either by precision roller bearing wheels or an internally mounted square rail. Combined with a Parker Hannifin stepper or servo motor system, the ER Series offers full programmability and high resolution and repeatability. Backed by an industryleading 2-year standard warranty and worldwide application support, the ER Series is the ideal solution to many linear motion applications.

Features

• Acme or ball screw drive
• Quality rolled ball screws, milled Acme screws
• Self-locking Acme screws
• High efficiency ball screw assemblies

Advantages

• Higher thrust capability
• Greater accuracy, repeatability
• Ideal for vertical applications
• Higher duty cycle, greater system efficiency
