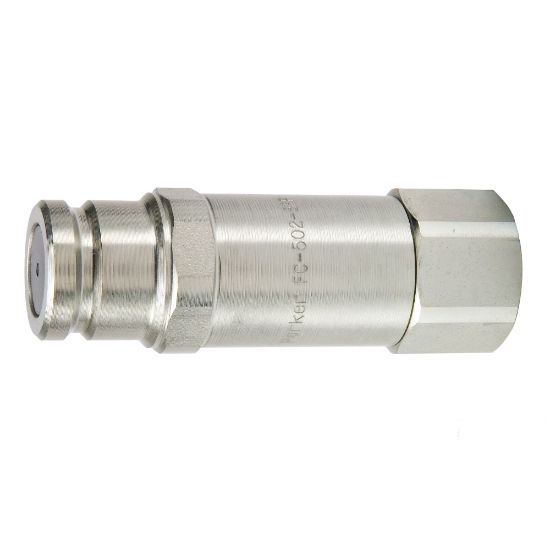

Picture of Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series - FC-372-8FP

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series - FC-372-8FP

Parker's non-spill, flat face hydraulic couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion
Availability:
3 in stock
Kansas City, KS3
SKU FC-372-8FP
$196.81
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEACoupling HalfMale Nipple
Body Size (inch)3/8Connection TypeFemale NPSF
Interchange TypeHTMA (ISO 16028)Connection Thread Size (inch)1/2 - 14
Maximum Operating Pressure3000ApplicationConnect Under Pressure
Hex Size1.062 inchDivisionQuick Coupling Division
Flow Rate6 Gal/minSeal MaterialPolyurethane/Nitrile
Valve TypeNon-spillMaximum Operating Temperature250 °F
Minimum Operating Temperature-40 °FBody MaterialSteel
Plating TypeZinc with clear trivalent chromateDimensional Weight0.05341726618705036 lb
Product TypePush to connect
