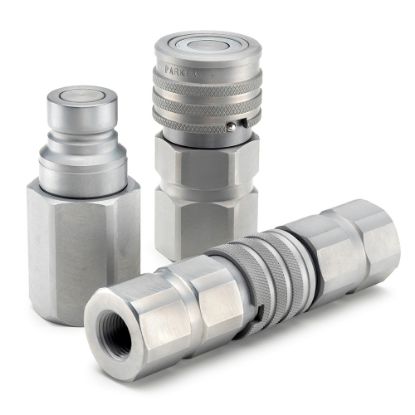

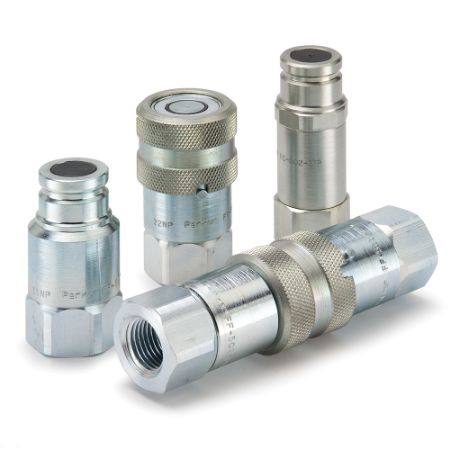

Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

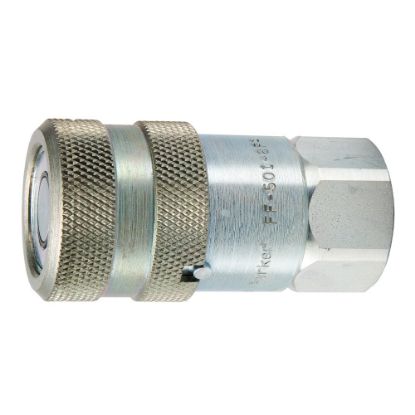

FF Series Hydraulic Couplers (up to 5000 psi), meet the requirements of Hydraulic Tool Manufacturer's Association (HTMA - ISO 16028) standards in the 3/8" size, and connect with FF/FC Series Nipples. Parker's FF Series quick connect fittings are double shut off with a non-spill, flat face design to minimize spillage and air inclusion when connecting or disconnecting. Couplers have a sleeve locking mechanism to help prevent accidental disconnection. FF Series quick couplings are available in a range of sizes to be versatile for use in applications with pressures up to 5000 psi.
FF and FC Series Nipples (hydraulic) up to 5000 psi, meet the requirements of Hydraulic Tool Manufacturer's Association (HTMA - ISO 16028) standards in the 3/8" size, and connect with FF Series Couplers. FC nipples are designed to connect under pressure, in situations where fluid lines contain residual pressure caused by thermal expansion.
Technical Characteristics:
• FF Sizes: 1/4” – 1”
• FC (Connect Under Pressure) Sizes: 3/8", 1/2" & 3/4"
• Material: Steel
• Port Ends: Female NPSF, Female NPTF, Female UNF, Female BSPP, Male NPTF, Male UNF
• Seal Options: Nitrile/Polyurethane, EPR, Fluorocarbon
Markets:
• Industrial
• Construction
• Utility
• Agriculture
Features/Benefits:
• Push-to-connect operation makes connection easy with one hand
• 3/8" size is globally interchangeable with other couplings complying with HTMA (ISO 16028) standards
• Hydraulic flat face valves minimize fluid loss when disconnecting, to reduce environmental contamination and avoid safety hazards caused by spillage.
• Hydraulic Flat Face valves minimize the amount of air that can enter the system when connecting fluid lines, thus preventing accelerated wear of the system's components.
• Sleeve lock guards against accidental disconnection
Applications:
• Hydraulic tools
• Construction equipment attachments
• Industrial hydraulic lines
• Agricultural implements
• Coolant fill and drain lines
| Action | SKU | Availability | Partner Available | Price | UOM | Body Size (inch) | Maximum Operating Pressure | Connection Thread Size (inch) | Coupling Half | Connection Type | Interchange Type | Maximum Operating Temperature | Body Material | Valve Type | Minimum Operating Temperature | Seal Material | Hex Size | Dimensional Weight | Plating Type | Flow Rate | Valve Type | Specifications Met |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FC-372-6FP | 1 Limited Stock | 12 in stock | $139.03/each | EA | 3/8 | 3000 | 3/8 - 18 | Male Nipple | Female NPSF | HTMA (ISO 16028) | 250 °F | Steel | Non-spill | -40 °F | Polyurethane/Nitrile | 1.062 inch | 0.05341726618705036 lb | Zinc with clear trivalent chromate | 6 Gal/min | |||
| FC-372-8FO | Backordered | Backordered | $104.22/each | EA | 3/8 | 3000 | 3/4 - 16 | Male Nipple | Female UNF | HTMA (ISO 16028) | 250 °F | Steel | Non-spill | -40 °F | Polyurethane/Nitrile | 1.062 inch | 0.05341726618705036 lb | Zinc with clear trivalent chromate | 6 Gal/min | |||
| FC-372-8FP | Backordered | 14 in stock | $196.81/each | EA | 3/8 | 3000 | 1/2 - 14 | Male Nipple | Female NPSF | HTMA (ISO 16028) | 250 °F | Steel | Non-spill | -40 °F | Polyurethane/Nitrile | 1.062 inch | 0.05341726618705036 lb | Zinc with clear trivalent chromate | 6 Gal/min | |||
| FC-502-10FO | Backordered | 25 in stock | $138.85/each | EA | 1/2 | 3000 | 7/8 - 14 | Male Nipple | Female UNF | na | 250 °F | Steel | Non-spill | -40 °F | Polyurethane/Nitrile | 1.125 inch | 0.12464028776978417 lb | Zinc with clear trivalent chromate | 12 Gal/min | |||
| FC-502-8FP | Backordered | Backordered | $143.76/each | EA | 1/2 | 3000 | 1/2 - 14 | Male Nipple | Female NPSF | na | 250 °F | Steel | Non-spill | -40 °F | Polyurethane/Nitrile | 1.125 inch | 0.12464028776978417 lb | Zinc with clear trivalent chromate | 12 Gal/min | |||
| FC-752-12FO | 1 Limited Stock | 14 in stock | $206.12/each | EA | 3/4 | 1500 | 1 1/16 - 12 | Male Nipple | Female UNF | na | 250 °F | Steel | Non-spill | -40 °F | Nitrile | 1.50 inch | 0.7997601918465228 lb | Zinc with clear trivalent chromate | 26 Gal/min | |||
| FC-752-12FP | Backordered | 6 in stock | $318.41/each | EA | 3/4 | 1500 | 3/4 - 14 | Male Nipple | Female NPSF | na | 250 °F | Steel | Non-spill | -40 °F | Nitrile | 1.50 inch | 0.6232014388489209 lb | Zinc with clear trivalent chromate | 26 Gal/min | |||
| FEM-371-6FB | Backordered | Backordered | $85.31/each | EA | 3/8 | 5000 | 3/8 - 19 | Female Coupler | Female BSPP | HTMA (ISO 16028) | 250 °F | Steel | Non-spill | -40 °F | Nitrile | 30 mm | Zinc Nickel | 6 Gal/min | Non-spill | ISO 16028 | ||
| FEM-371-8FB | Backordered | Backordered | $72.41/each | EA | 3/8 | 5000 | G 1/2 | Female Coupler | Female BSPP | HTMA (ISO 16028) | 250 °F | Steel | Non-spill | -40 °F | Nitrile | 30 mm | Zinc Nickel | 6 Gal/min | Non-spill | ISO 16028 | ||
| FEM-372-6FB | Backordered | 14 in stock | $40.31/each | EA | 3/8 | 5000 | 3/8 - 19 | Male Nipple | Female BSPP | HTMA (ISO 16028) | 250 °F | Steel | Non-spill | -40 °F | Nitrile | 30 mm | Zinc Nickel | 6 Gal/min | Non-spill | ISO 16028 | ||
| FEM-372-8FB | Backordered | 3 in stock | $52.07/each | EA | 3/8 | 5000 | G1/2 | Male Nipple | Female BSPP | HTMA (ISO 16028) | 250 °F | Steel | Non-spill | -40 °F | Nitrile | 30 mm | Zinc Nickel | 6 Gal/min | Non-spill | |||
| FF-1001-16FO | Backordered | 11 in stock | $355.75/each | EA | 1 | 3000 | 1 5/16 - 12 | Female Coupler | Female UNF | na | 250 °F | Steel | Non-spill | -40 °F | Nitrile | 1.87 inch | 0.6232014388489209 lb | Zinc with clear trivalent chromate | 50 Gal/min | |||
| FF-1001-16FP | 3 in stock | 19 in stock | $368.08/each | EA | 1 | 3000 | 1 - 11 1/2 | Female Coupler | Female NPSF | na | 250 °F | Steel | Non-spill | -40 °F | Nitrile | 1.87 inch | 0.7997601918465228 lb | Zinc with clear trivalent chromate | 50 Gal/min | |||
| FF-1002-16FO | Backordered | 6 in stock | $230.78/each | EA | 1 | 3000 | 1 5/16 - 12 | Male Nipple | Female UNF | na | 250 °F | Steel | Non-spill | -40 °F | Nitrile | 1.87 inch | 0.6232014388489209 lb | Zinc with clear trivalent chromate | 50 Gal/min | |||
| FF-1002-16FP | 9 in stock | 52 in stock | $200.68/each | EA | 1 | 3000 | 1 - 11 1/2 | Male Nipple | Female NPSF | na | 250 °F | Steel | Non-spill | -40 °F | Nitrile | 1.87 inch | 0.7997601918465228 lb | Zinc with clear trivalent chromate | 50 Gal/min | |||
| FF-251-4FP | 17 in stock | 160 in stock | $140.10/each | EA | 1/4 | 5000 | 1/4 - 18 | Female Coupler | Female NPSF | na | 250 °F | Steel | Non-spill | -40 °F | Nitrile | 1 inch | 0.07997601918465227 lb | Zinc with clear trivalent chromate | 3 Gal/min | |||
| FF-251-4FP-E4 | Backordered | Backordered | $171.54/each | EA | 1/4 | 5000 | 1/4 - 18 | Female Coupler | Female NPSF | na | 400 °F | Steel | Non-spill | -15 °F | Fluorocarbon | 1 inch | Zinc with clear trivalent chromate | 3 Gal/min | ||||
| FF-251-4MP | 7 in stock | 13 in stock | $150.55/each | EA | 1/4 | 5000 | 1/4 - 18 | Female Coupler | Male NPTF | na | 250 °F | Steel | Non-spill | -40 °F | Nitrile | 1 inch | 0.05341726618705036 lb | Zinc with clear trivalent chromate | 3 Gal/min | |||
| FF-251-6FO | Backordered | 37 in stock | $135.61/each | EA | 1/4 | 5000 | 9/16 - 18 | Female Coupler | Female UNF | na | 250 °F | Steel | Non-spill | -40 °F | Nitrile | 1 inch | 0.05341726618705036 lb | Zinc with clear trivalent chromate | 3 Gal/min | |||
| FF-252-4FP | 17 in stock | 179 in stock | $69.18/each | EA | 1/4 | 5000 | 1/4 - 18 | Male Nipple | Female NPSF | na | 250 °F | Steel | Non-spill | -40 °F | Nitrile | 1 inch | 0.02670863309352518 lb | Zinc with clear trivalent chromate | 3 Gal/min |
