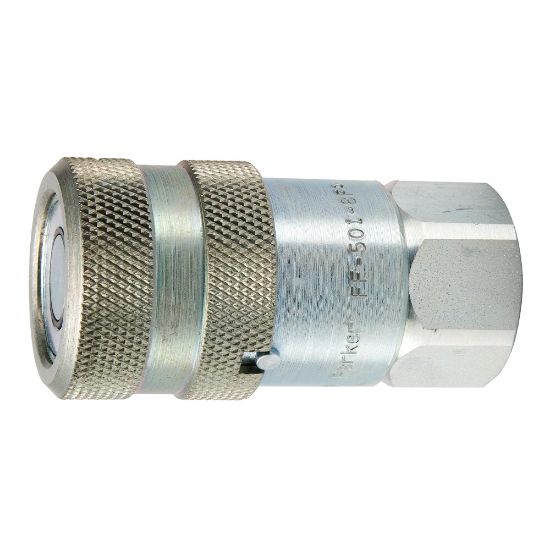

FF-1001-16FP - Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series

Name: FF-1001-16FP - Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series
SKU: FF-1001-16FP
Price: 368.08 USD
Availability: LimitedAvailability

Parker's non-spill, flat face hydraulic couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion

Availability:

3 in stock

Springfield, MO	1
COLUMBIA, MO	1
Peoria, IL	1

Partner Available:

19 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU FF-1001-16FP

$368.08/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	3000
Connection Thread Size (inch)	1 - 11 1/2	Interchange Type	na
Connection Type	Female NPSF	Coupling Half	Female Coupler
Body Size (inch)	1	Body Material	Steel
Valve Type	Non-spill	Plating Type	Zinc with clear trivalent chromate
Flow Rate	50 Gal/min	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Hex Size	1.87 inch
Seal Material	Nitrile	Dimensional Weight	0.7997601918465228 lb

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
