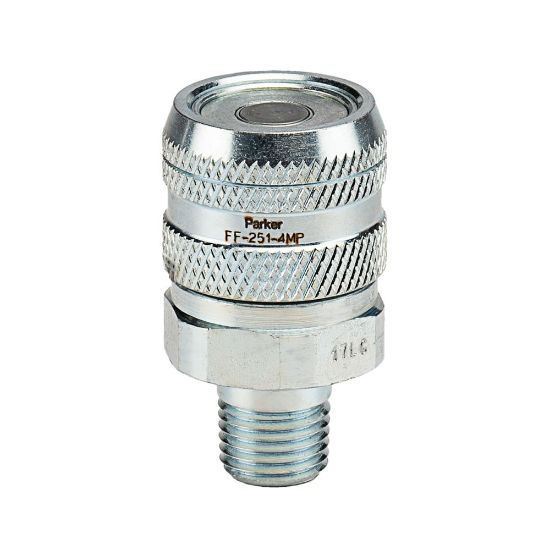

FF-251-4MP - Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series

Name: FF-251-4MP - Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series
SKU: FF-251-4MP
Price: 150.55 USD
Availability: LimitedAvailability

Parker's non-spill, flat face hydraulic couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion

Availability:

7 in stock

WICHITA, KS	2
Kansas City, KS	1
Springfield, MO	1
COLUMBIA, MO	1
Kansas City, KS	1
Peoria, IL	1

Partner Available:

13 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU FF-251-4MP

$150.55/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Male NPTF
Interchange Type	na	Maximum Operating Pressure	5000
Coupling Half	Female Coupler	Connection Thread Size (inch)	1/4 - 18
Body Size (inch)	1/4	Plating Type	Zinc with clear trivalent chromate
Dimensional Weight	0.05341726618705036 lb	Hex Size	1 inch
Valve Type	Non-spill	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Body Material	Steel
Flow Rate	3 Gal/min	Seal Material	Nitrile

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
