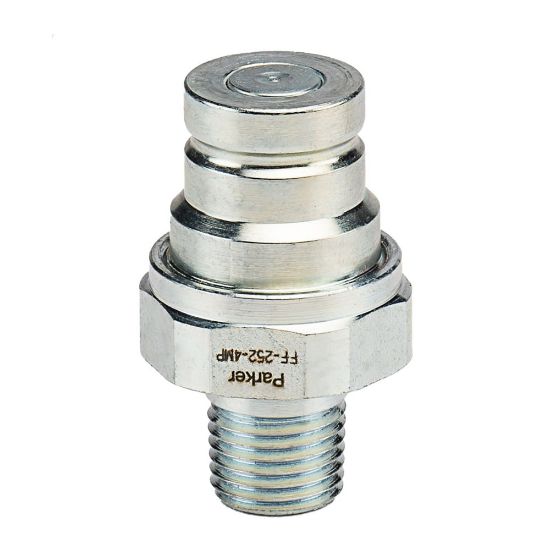

FF-252-4MP - Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series

Name: FF-252-4MP - Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series
SKU: FF-252-4MP
Price: 80.30 USD
Availability: InStock

Parker's non-spill, flat face hydraulic couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion

Availability:

4 in stock

WICHITA, KS

Partner Available:

26 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU FF-252-4MP

$80.30/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Male NPTF
Connection Thread Size (inch)	1/4 - 18	Interchange Type	na
Coupling Half	Male Nipple	Maximum Operating Pressure	5000
Body Size (inch)	1/4	Seal Material	Nitrile
Hex Size	1 inch	Body Material	Steel
Valve Type	Non-spill	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Dimensional Weight	0.02670863309352518 lb
Plating Type	Zinc with clear trivalent chromate	Flow Rate	3 Gal/min
