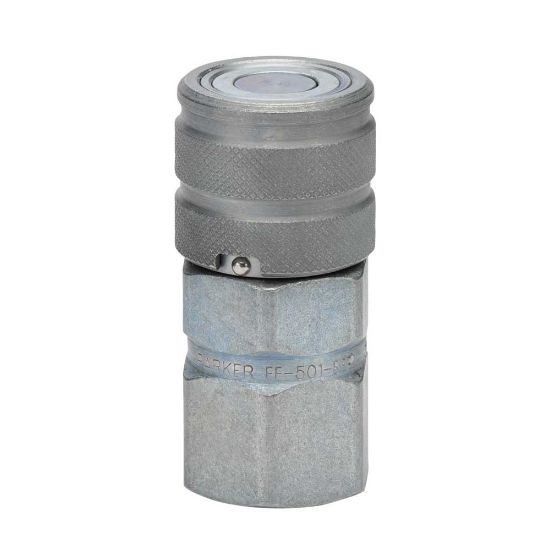

FF-501-8FP-E4 - Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series

Parker's non-spill, flat face hydraulic couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	9 in stock

SKU FF-501-8FP-E4

$175.36/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Interchange Type	na
Connection Thread Size (inch)	1/2 - 14	Coupling Half	Female Coupler
Connection Type	Female NPSF	Maximum Operating Pressure	3000
Body Size (inch)	1/2	Maximum Operating Temperature	400 °F
Hex Size	36 mm	Minimum Operating Temperature	-15 °F
Body Material	Steel	Valve Type	Non-spill
Plating Type	Zinc nickel plating	Flow Rate	12 Gal/min
Seal Material	Fluorocarbon

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
