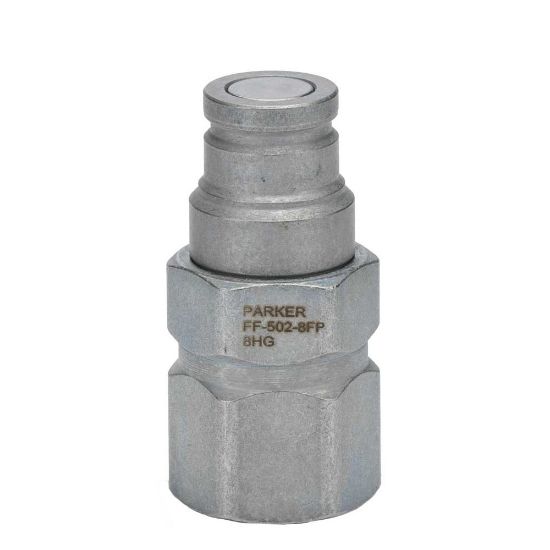

FF-502-8FP-E4 - Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series

Parker's non-spill, flat face hydraulic couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	8 in stock

SKU FF-502-8FP-E4

$75.30/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1/2
Coupling Half	Male Nipple	Connection Thread Size (inch)	1/2 - 14
Connection Type	Female NPSF	Maximum Operating Pressure	3000
Interchange Type	na	Body Material	Steel
Maximum Operating Temperature	400 °F	Seal Material	Fluorocarbon
Minimum Operating Temperature	-15 °F	Flow Rate	12 Gal/min
Valve Type	Non-spill	Hex Size	36 mm
Plating Type	Zinc nickel plating

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
