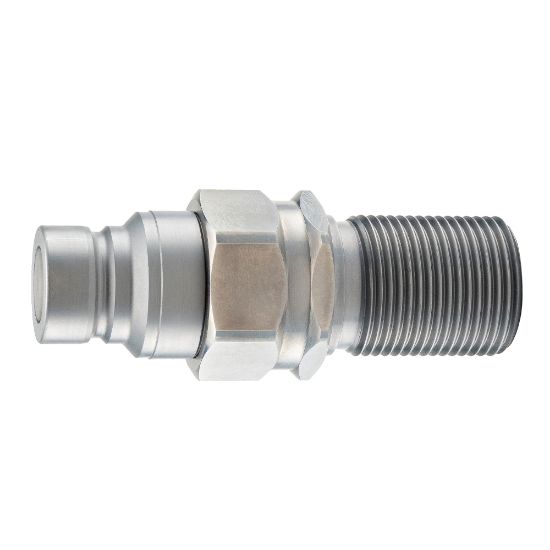

FEM-502-10BMS - Flat Face, ISO 16028, Hydraulic Quick Couplings - FEM Series

Name: FEM-502-10BMS - Flat Face, ISO 16028, Hydraulic Quick Couplings - FEM Series
SKU: FEM-502-10BMS
Price: 45.76 USD
Availability: LimitedAvailability

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of applications where fluid lines require fast & easy connection and disconnection. These quick connect fittings are designed to minimize spillage and limit air inclusion

Availability:

7 in stock

Springfield, MO	2
TOPEKA, KS	2
Decatur, IL	2
Joplin, MO	1

Partner Available:

124 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU FEM-502-10BMS

$45.76/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1/2
Maximum Operating Pressure	5000	Connection Thread Size (inch)	1 - 14
Coupling Half	Male Nipple	Connection Type	Male bulkhead face seal
Valve Type	Non-spill	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Dimensional Weight	0.15995203836930455 lb
Body Material	Steel	Plating Type	Zinc Nickel
Hex Size	31.75 mm	Specifications Met	ISO 16028
Seal Material	Polyurethane/Nitrile	Flow Rate	12 Gal/min

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
