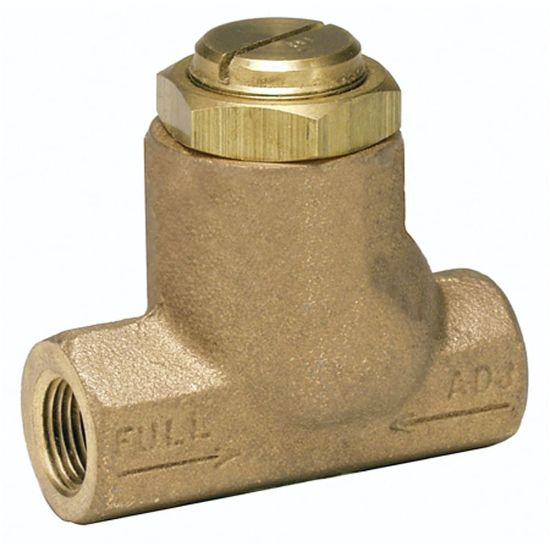

Picture of Flow Control Valve - 3250 Series - 032500119

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Flow Control Valve - 3250 Series - 032500119

The 3250 series flow control valves are designed to accurately meter the flow of air with large port sizes up to 1-1/2" NPT and flows of 1800 SCFM. Each valve has a fine screw adjustment, allowing precise settings that are secured by a sturdy lock nut.
Availability:
Backordered
SKU 032500119
$88.97
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAPort Size (inch)1/8
Port TypeNPTFDivisionPneumatic Division
MediaAirProduct TypeFlow Control
OptionsExtended Temperature VersionLubricantNone
Mounting TypeInlineNeedle MaterialStainless Steel
Port ConnectionFemale to FemaleFlow Rate70 (metered)<br>60 (free flow) SCFM
Port Size1/8"Port TypeNPTF
Body MaterialBrass or Cast AluminumSeal MaterialBuna N<br>Urethane
Flow Coefficient-Operating Pressure0 - 17 bar
Operating Temperature-40° to +82° °COperation TypeMeter Screw, Screw Drive Flat
Product resources

Literature and Reference Materials
