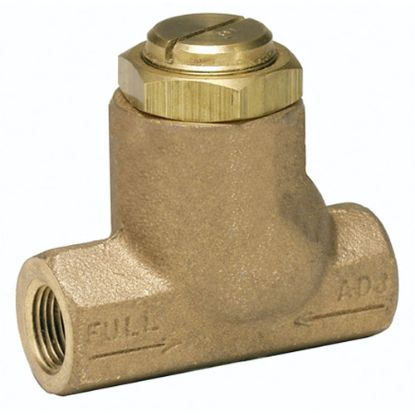

Flow Control Valve - 3250 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The 3250 Series flow control valves are specially designed to accurately meter the flow of air in one direction and allow free flow in the opposite direction. The 3250 series flow controls valves are also suitable for low pressure hydraulic service. Units 1" and above have been designed to provide effective flow settings for large diameter cylinders and for other similar air applications. Each valve has a fine screw adjustment, allowing precise settings which are secured by a sturdy lock nut. Extended temperature versions up to 300 degrees F are available as specials.
Markets
• General Industrial
• Automotive
• Factory Automation
Features/Benefits
• Suitable for low pressure hydraulic service
• Accomodates precise settings
• Specials available to meet specific needs
Applications
• General Industrial
• Conveyance
• Packaging
• Assembly
| Action | SKU | Availability | Partner Available | Price | UOM | Port Size (inch) | Port Type | Media | Options | Lubricant | Mounting Type | Needle Material | Port Connection | Flow Rate | Port Size | Port Type | Body Material | Seal Material | Flow Coefficient | Operating Pressure | Operation Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 032500119 | Backordered | 9 in stock | $100.70/each | EA | 1/8 | NPTF | Air | Extended Temperature Version | None | Inline | Stainless Steel | Female to Female | 70 (metered)<br>60 (free flow) SCFM | 1/8" | NPTF | Brass or Cast Aluminum | Buna N<br>Urethane | - | 0 - 17 bar | Meter Screw, Screw Drive Flat | |
| 032500219 | Backordered | 43 in stock | $111.56/each | EA | 1/4 | NPTF | Air | Extended Temperature Version | None | Inline | Stainless Steel | Female to Female | 130 (metered)<br>120 (free flow) SCFM | 1/4" | NPTF | Brass or Cast Aluminum | Buna N<br>Urethane | - | 0 - 250 | Meter Screw, Screw Drive Flat | |
| 032500319 | Backordered | 19 in stock | $138.72/each | EA | 3/8 | NPTF | Air | Extended Temperature Version | None | Inline | Stainless Steel | Female to Female | 220 (metered)<br>205 (free flow) SCFM | 3/8" | NPTF | Brass or Cast Aluminum | Buna N<br>Urethane | - | 0 - 250 | Meter Screw, Screw Drive Flat | |
| 032500419 | Backordered | 36 in stock | $193.03/each | EA | 1/2 | NPTF | Air | Extended Temperature Version | None | Inline | Stainless Steel | Female to Female | 295 (metered)<br>346 (free flow) SCFM | 1/2" | NPTF | Brass or Cast Aluminum | Buna N<br>Urethane | - | 0 - 250 | Meter Screw, Screw Drive Flat | |
| 032500519 | Backordered | 6 in stock | $272.35/each | EA | 3/4 | NPTF | Air | Extended Temperature Version | None | Inline | Stainless Steel | Female to Female | 420 (metered)<br>615 (free flow) SCFM | 3/4" | NPTF | Brass or Cast Aluminum | Buna N<br>Urethane | - | 0 - 17 bar | Meter Screw, Screw Drive Flat | |
| 032501000 | Backordered | 1 Limited Stock | $428.65/each | EA | 1 | NPTF | Air | Extended Temperature Version | None | Inline | Stainless Steel | Female to Female | 1000 | 1" | NPTF | Brass or Cast Aluminum | Buna N<br>Urethane | - | 0 - 250 | Meter Screw, Screw Drive Flat | |
| 032501250 | Backordered | Backordered | $378.70/each | EA | 1-1/4 | NPTF | Air | Extended Temperature Version | None | Inline | Stainless Steel | Female to Female | 1200 | 1-1/4 | NPTF | Brass | Nitrile Butadiene Rubber (NBR) | - | 0 to 250 | Meter Screw, Screw Drive Flat | |
| 032501500 | Backordered | Backordered | $452.75/each | EA | 1-1/2 | NPTF | Air | Extended Temperature Version | None | Inline | Stainless Steel | Female to Female | 1800 | 1-1/2 | NPTF | Brass | Nitrile Butadiene Rubber (NBR) | - | 0 to 250 | Meter Screw, Screw Drive Flat | |
| 3250G0219 | Backordered | Backordered | $93.42/each | EA | 1/4 | BSPP | Air | Extended Temperature Version | None | Inline | Stainless Steel | Female to Female | 130 (metered)<br>120 (free flow) SCFM | 1/4" | BSPP | Brass or Cast Aluminum | Buna N<br>Urethane | - | 0 - 250 | Meter Screw, Screw Drive Flat | |
| 3250G0319 | Backordered | Backordered | $100.57/each | EA | 3/8 | BSPP | Air | Extended Temperature Version | None | Inline | Stainless Steel | Female to Female | 220 (metered)<br>205 (free flow) SCFM | 3/8" | BSPP | Brass or Cast Aluminum | Buna N<br>Urethane | - | 0 - 250 | Meter Screw, Screw Drive Flat | |
| 3250G0419 | Backordered | Backordered | $140.30/each | EA | 1/2 | BSPP | Air | Extended Temperature Version | None | Inline | Stainless Steel | Female to Female | 295 (metered)<br>346 (free flow) SCFM | 1/2" | BSPP | Brass or Cast Aluminum | Buna N<br>Urethane | - | 0 - 250 | Meter Screw, Screw Drive Flat | |
| 3250G0519 | Backordered | Backordered | $202.17/each | EA | 3/4 | BSPP | Air | Extended Temperature Version | None | Inline | Stainless Steel | Female to Female | 420 (metered)<br>615 (free flow) SCFM | 3/4" | BSPP | Brass or Cast Aluminum | Buna N<br>Urethane | - | 0 - 250 | Meter Screw, Screw Drive Flat | |
| 3250G1000 | Backordered | Backordered | $326.40/each | EA | 1 | BSPP | Air | Extended Temperature Version | None | Inline | Stainless Steel | Female to Female | 1000 | 1" | BSPP | Brass or Cast Aluminum | Buna N<br>Urethane | - | 0 - 250 | Meter Screw, Screw Drive Flat | |
| 3250G1500 | Backordered | Backordered | $403.70/each | EA | 1-1/2 | BSPP | Air | Extended Temperature Version | None | Inline | Stainless Steel | Female to Female | 1800 | 1-1/2 | BSPP | Brass | Nitrile Butadiene Rubber (NBR) | - | 0 to 250 | Meter Screw, Screw Drive Flat |
