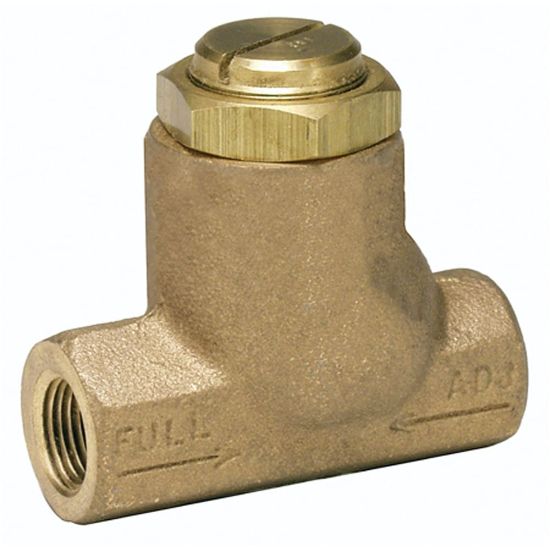

Picture of Flow Control Valve - 3250 Series - 3250G0219

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Flow Control Valve - 3250 Series - 3250G0219

The 3250 series flow control valves are designed to accurately meter the flow of air with large port sizes up to 1-1/2" NPT and flows of 1800 SCFM. Each valve has a fine screw adjustment, allowing precise settings that are secured by a sturdy lock nut.
Availability:
Backordered
SKU 3250G0219
$93.42
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAPort TypeBSPP
Port Size (inch)1/4DivisionPneumatic Division
MediaAirPort TypeBSPP
Product TypeFlow ControlOptionsExtended Temperature Version
LubricantNoneMounting TypeInline
Needle MaterialStainless SteelPort ConnectionFemale to Female
Flow Rate130 (metered)<br>120 (free flow) SCFMPort Size1/4"
Body MaterialBrass or Cast AluminumSeal MaterialBuna N<br>Urethane
Flow Coefficient-Operating Pressure0 - 250
Operating Temperature-40° to +180° °FOperation TypeMeter Screw, Screw Drive Flat
