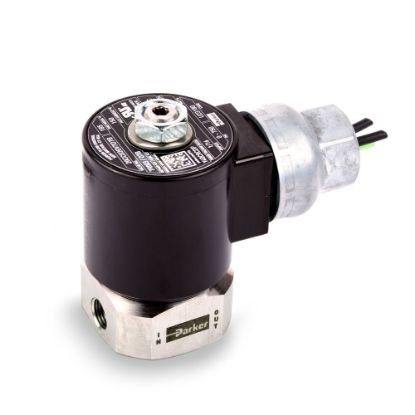

G7 SERIES Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker Gold Ring™ and Skinner® valves have evolved.
The next generation of 2/2 and 3/2 solenoid valves delivers the confidence to get the job done in the most demanding applications.
High performance, Express Ship Program-eligibility, and a host of new and innovative features make doing business easier than ever before.
Ensuring high performance and an optimized total cost of ownership, Parker continues to focus on Engineering Your Success.
Features/ Benefits:
• Engineered for Long Life (up to 20 million cycles)
• Industry-Leading Pressure, Flow, and Temperature ratings - even in DC voltages
• IP69-rated Solenoid Coils
• Corrosion-Resistant Construction
• 24-Hour Express Ship Program
• Durable Laser-Marked Identification
• Innovative Parker Tracking System (PTS)
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Applications
• Instrumentation Equipment
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Commercial and Industrial Plumbing
• Oil Burners
• Fuel Shut Off
• Textile and Dry Cleaning Equipment
• Irrigation Equipment
Read More...The next generation of 2/2 and 3/2 solenoid valves delivers the confidence to get the job done in the most demanding applications.
High performance, Express Ship Program-eligibility, and a host of new and innovative features make doing business easier than ever before.
Ensuring high performance and an optimized total cost of ownership, Parker continues to focus on Engineering Your Success.
Features/ Benefits:
• Engineered for Long Life (up to 20 million cycles)
• Industry-Leading Pressure, Flow, and Temperature ratings - even in DC voltages
• IP69-rated Solenoid Coils
• Corrosion-Resistant Construction
• 24-Hour Express Ship Program
• Durable Laser-Marked Identification
• Innovative Parker Tracking System (PTS)
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Applications
• Instrumentation Equipment
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Commercial and Industrial Plumbing
• Oil Burners
• Fuel Shut Off
• Textile and Dry Cleaning Equipment
• Irrigation Equipment
| Action | SKU | Availability | Partner Available | Price | UOM | Seal Material | Configuration | Voltage | Function | Coil Type | Body Material | Port Size (inch) | Orifice Size (inch) | Minimum Pressure Differential (psi) | Maximum Operating Pressure Differential (psig) | Actuation Type | Minimum Pressure Differential | Seal Material | Body Material | Configuration | Input Voltage | Orifice Size | Function | Port Size | Installation | Power Consumption | Specifications Met | Main Flow Coefficient | Maximum Fluid Temperature | Preventive Maintenance Kit | Maximum Ambient Temperature | Maximum Pressure Differential | Coil Specifications Met | Exhaust Flow Coefficient |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20CC04PV7 | Backordered | Backordered | $114.42/each | EA | FKM | Normally Closed | Pressure Vessel Only (AC or DC Voltage) | 2-Way | Requires G7 Series Coil Kit | 303 Stainless Steel | 1/4 NPT | 1/8 | 0 | 375 (AC) / 165 (DC) | Direct Acting | 0 psi | FKM | Stainless Steel 303 | All Ports in Body | Pressure Vessel Only (AC or DC Voltage) | 1/8 inch | 2-Way | NPT 1/4 inch | IOM7220 | 10 W | - | 0.29 Cv | 185 °F | 7R003 | 150 °F | 375 psig (AC) | Requires G7 Series Coil Kit | n/a | |
| 20CC04PV7C7A | Backordered | Backordered | $162.50/each | EA | FKM | Normally Closed | 12 VDC | 2-Way | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 303 Stainless Steel | 1/4 NPT | 1/8 | 0 | 165 | Direct Acting | 0 psi | FKM | Stainless Steel 303 | All Ports in Body | 12.0 VDC | 1/8 inch | 2-Way | NPT 1/4 inch | IOM7220 | 10 W | CULus Safety Shutoff | 0.29 Cv | 185 °F | 7R003 | 150 °F | 165 psig | IP69 | n/a | |
| 20CC06QV7 | Backordered | Backordered | $142.98/each | EA | FKM | Normally Closed | Pressure Vessel Only (AC or DC Voltage) | 2-Way | Requires G7 Series Coil Kit | 303 Stainless Steel | 3/8 NPT | 5/32 | 0 | 230 (AC) / 85 (DC) | Direct Acting | 0 psi | FKM | Stainless Steel 303 | Normally Closed (NC) | Pressure Vessel Only (AC or DC Voltage) | 5/32 inch | 2-Way | NPT 3/8 inch | IOM7220 | 10 W | - | 0.43 Cv | 185 °F | 7R003 | 150 °F | 85 psig (DC) | Requires G7 Series Coil Kit | n/a | |
| 20LC04LN7 | Backordered | Backordered | $95.94/each | EA | NBR | Normally Closed | Pressure Vessel Only (AC or DC Voltage) | 2-Way | Requires G7 Series Coil Kit | Lead-Free Brass | 1/4 NPT | 3/32 | 0 | 550 (AC) / 520 (DC) | Direct Acting | 0 psi | NBR | Lead-Free Brass | All Ports in Body | Pressure Vessel Only (AC or DC Voltage) | 3/32 inch | 2-Way | NPT 1/4 inch | IOM7220 | 10 W | - | 0.18 Cv | 185 °F | 7R004 | 150 °F | 550 psig (AC) | Requires G7 Series Coil Kit | n/a | |
| 23LC12VN7C8B | Backordered | Backordered | $291.00/each | EA | NBR | Normally Closed | 24 VDC | 2-Way | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | Lead-Free Brass | 3/4 NPT | 3/4 | 0 | 250 | Direct Lift | 0 psi | NBR | Lead-Free Brass | Normally Closed (NC) | 24.0 VDC | 3/4 inch | 2-Way | NPT 3/4 inch | IOM7222 | 22 W | CULus Safety Shutoff | 5 Cv | 185 °F | 7R027 | 125 °F | 250 psig | IP69 | n/a | |
| 23LC12VN7D7F | Backordered | Backordered | $236.26/each | EA | NBR | Normally Closed | 120/60, 110/50 | 2-Way | DIN 43650A / ISO 4400 | Lead-Free Brass | 3/4 NPT | 3/4 | 0 | 300 | Direct Lift | 0 psi | NBR | Lead-Free Brass | All Ports in Body | 120/60 VAC | 3/4 inch | 2-Way | NPT 3/4 inch | IOM7222 | 10 W | CURus Safety Shutoff | 5 Cv | 185 °F | 7R014 | 150 °F | 300 psig | NEMA 4X | n/a | |
| 30CC04LN7C7F | Backordered | Backordered | $189.17/each | EA | NBR | Normally Closed | 120/60, 110/50 | 3-Way | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 303 Stainless Steel | 1/4 NPT | 3/32 | 0 | 160 | Direct Acting | 0 psi | NBR | Stainless Steel 303 | Pressure In Body - Out Sleeve | 120/60 VAC | 3/32 inch | 3-Way | NPT 1/4 inch | IOM7221 | 10 W | CULus General Purpose | 0.18 Cv | 185 °F | 7R005 | 150 °F | 160 psig | IP69 | 0.17 Cv | |
| 30CC04LV7 | Backordered | Backordered | $150.17/each | EA | FKM | Normally Closed | Pressure Vessel Only (AC or DC Voltage) | 3-Way | Requires G7 Series Coil Kit | 303 Stainless Steel | 1/4 NPT | 3/32 | 0 | 160 | Direct Acting | 0 psi | FKM | Stainless Steel 303 | Normally Closed (NC) | Pressure Vessel Only (AC or DC Voltage) | 3/32 inch | 3-Way | NPT 1/4 inch | IOM7221 | 10 W | - | 0.18 Cv | 185 °F | 7R008 | 150 °F | 160 psig | Requires G7 Series Coil Kit | 0.17 Cv | |
| 30CC04PN7C7F | Backordered | Backordered | $187.76/each | EA | NBR | Normally Closed | 120/60, 110/50 | 3-Way | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 303 Stainless Steel | 1/4 NPT | 1/8 | 0 | 95 | Direct Acting | 0 psi | NBR | Stainless Steel 303 | Pressure In Body - Out Sleeve | 120/60 VAC | 1/8 inch | 3-Way | NPT 1/4 inch | IOM7221 | 10 W | CULus General Purpose | 0.24 Cv | 185 °F | 7R005 | 150 °F | 95 psig | IP69 | 0.17 Cv | |
| 30CF04LN7B7A | Backordered | Backordered | $509.10/each | EA | NBR | Normally Open | 12 VDC | 3-Way | Leads-only (Incl. Ground Lead) | 303 Stainless Steel | 1/4 NPT | 3/32 | 0 | 180 | Direct Acting | 0 psi | NBR | Stainless Steel 303 | Normally Open (NO) | 12.0 VDC | 3/32 inch | 3-Way | NPT 1/4 inch | IOM7221 | 10 W | CURus General Purpose | 0.17 Cv | 185 °F | 7R006 | 150 °F | 180 psig | IP69 | 0.18 Cv |
