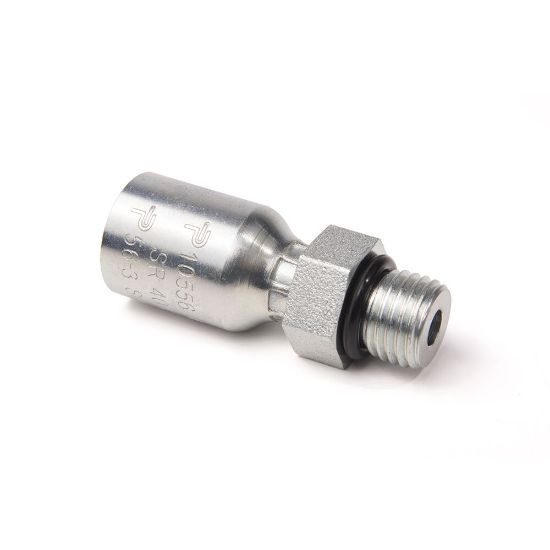

Picture of 10556-5-5 - Global Fittings - 56 Series - Inch

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

10556-5-5 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.
Availability:
Backordered
Estimated Lead Time: 14 days
Partner Available:5 in stock
SKU 10556-5-5
$43.35/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAMaterials of ConstructionSteel
Hose I.D. (inch)0.313"Connection 2 Size1/2"-20
Product StyleMale SAE Straight Thread with O-ring - Rigid - StraightLength (inch)1.91"
ShapeStraightCoatingChromium 6 Free-plated
Hex Size 1n/aConfigurationHose to Port
For Fluid TypeHydraulic FluidsConnection 1 TypeHose
Tube Outside Diametern/aConnection 1 Size5/16 inch Hose I.D.
IndustryIndustrial Manufacturing EquipmentHex Size5/8 inch (see drawing legend H)
Hex Size 2n/aConnection Length22 mm Cut-off allowance
Maximum Operating Pressure34.5 MPa (Dependent on hose)Dimensional Weight0.0529 lb
Connection 2 Size1/2"-20 inch ThreadBody MaterialSteel with Nitrile O-Ring
Fitting Length49 mm (see drawing legend A)Shipping Weight0.093 lb
Connection 2 TypeSAE
