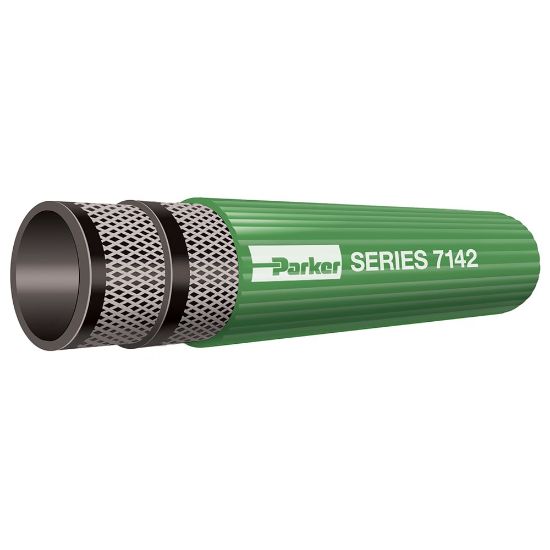

Picture of Grade T Single Line Oxygen Welding Hose, Series 7142 - 7142-75200

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Grade T Single Line Oxygen Welding Hose, Series 7142 - 7142-75200

Note: This product is no longer available - please contact us for further assistance
Availability:
Backordered
SKU 7142-75200
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)3/4
Maximum Working Pressure (psi)200Minimum Operating Temperature-40 °C
DivisionHose Products DivisionMinimum Bend Radius6 inch
Cover ColorGreenMaximum Operating Temperature93 °C
Weight0.20 kg/mInside Diameter19.1 mm
Package TypeReelHose Reinforcement Material4 Plies of Textile
Cover MaterialChloroprene Rubber (CR)Compatible FittingHY Series
Maximum Operating Pressure13.8 barOutside Diameter1.160 inch
ApplicationWeldingLength per Package400 ft
Specifications MetARPM IP-7MediaIndustrial Gases (Oxygen)
Hose Inner Tube MaterialChloroprene Rubber (CR)Tube MaterialChloroprene Rubber (CR)
