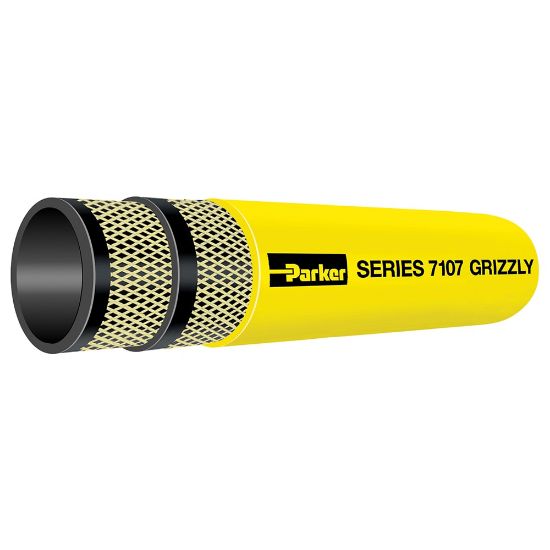

GRIZZLY™ 500 Nonconductive Multipurpose Oil Resistant Hose, Series 7107 - 7107-200500

Grizzly 500 Nonconductive Oil Resistant Multipurpose Rubber Hose is a premium product designed to transfer air, mild chemicals, oil and water in applications to 212°F and 500 psi, Series 7107.
Availability:
Backordered
SKU 7107-200500
$29.30
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTStandard Pack Qty (ft)100
Hose I.D. (inch)2Maximum Working Pressure (psi)500
Minimum Operating Temperature-40 °CDivisionHose Products Division
MediaWaterMaximum Operating Temperature100 °C
ApplicationAirMaximum Operating Pressure500 psi
Cover ColorYellowCover StructureSmooth
Inside Diameter2 inchPackage TypeReel
Minimum Bend Radius24 inchWeight1.31 lb/ft
Hose Inner Tube MaterialNitrileCover MaterialNitrile/PVC
Outside Diameter2.670 inchCompatible Fitting71 Series
Specifications MetARPM Class A TubeHose Reinforcement Material4 Plies of Aramid
