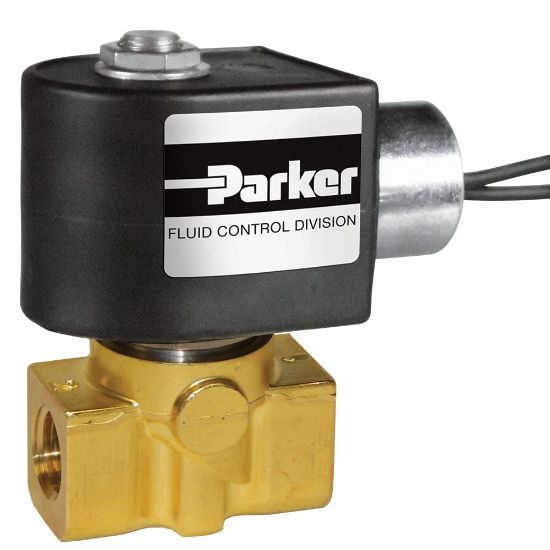

Parker 2-Way Normally Closed, 3/8" NPT General Purpose Solenoid Valves - 7321HBN3TN00N0C111C1

Name: Parker 2-Way Normally Closed, 3/8" NPT General Purpose Solenoid Valves - 7321HBN3TN00N0C111C1
SKU: 7321HBN3TN00N0C111C1

Parker 2-Way Normally Closed, 3/8" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 5.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.

Availability:

Backordered

SKU 7321HBN3TN00N0C111C1

$542.35

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	Voltage (V)	12 VDC
Seal Material	NBR	Power (Watts)	10 Watt (DC)
Orifice 1 Size (inch)	7/16	Flow Factor 1 (Cv)	3.5
Maximum Pressure Differential (psi)	435 psi (DC)	Port Type	NPT
Body Material	Brass	Division	Fluid Control Division
Media	Liquids and Gases	Function	Normally Closed (NC)
Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	Valve Type	2-Way
Input Voltage	12.0 VDC	Seal Material	NBR
Orifice 2 Size	n/a	Number of Ports	2
Flow Coefficient 2	n/a	Coil Specifications Met	NEMA 4X
Minimum Fluid Temperature	0 °F	Port Size	3/8 inch
Minimum Pressure Differential	5 psi	Maximum Fluid Temperature	185 °F
Actuation Type	Mechanical	Product Series	7000 Series
Power Consumption	10 W (DC)	Orifice 1 Size	7/16 inch
Flow Coefficient 1	3.5 Cv	Maximum Pressure Differential	435 psi (DC)

Product resources

Literature and Reference Materials

Tube Seal (PDF)
