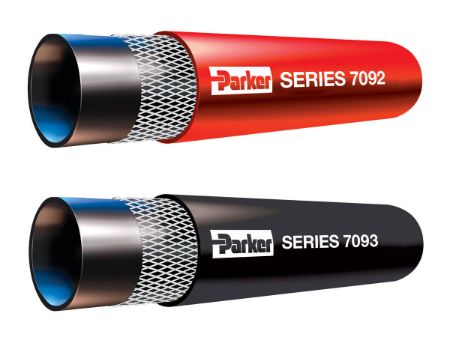

GST® II General Purpose Air & Water Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's GST II General Purpose Industrial Air & Water Hose provides excellent service across multiple applications. The hose tube is compatible with light oil mists for tool lubrication. The hose cover is available in multiple colors for easy identification, and also resists abrasion and weathering. GST II hose is available in long continuous lengths for efficient inventory management and maximum utility at cramped or hard to reach job sites. The hose is qualified with permanent crimp couplings for a safe and secure connection and is a versatile hose for many common industrial applications.

Markets:
• Agriculture
• Construction
• General Industrial

Features/Benefits:
• Tube: Black EPDM for versatile and economical service to 212°F.
• Reinforcement: Multiple textile plies for strength and kink resistance.
• Cover: Black, blue, green, red or yellow EPDM for abrasion and weathering resistance.
• Couplings: Qualified with steel crimp couplings for a durable, safe and secure connection.

Applications:
- media
• Air
• Mild chemicals
• Water
- usage
• Air compressor/air tool hose, including systems that employ light oil mists for lubrication
• Shop air hose
• Water hose for clean-up/wash down, cooling and spray

Safety/Technical:
• Design Factor: 4:1
• Do not use with oil or refined fuel.

Warnings:
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines
• Under no circumstance is the GST II family of hoses or any other EPDM hose to be used in a welding hose and or welding gas delivery application unless the Parker catalog, literature, and a product marking explicitly states that the product is approved for welding hose fuel gas applications.

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	UOM	Hose I.D. (inch)	Standard Pack Qty (ft)	Color	Maximum Working Pressure (psi)	Pkg Qty/UOM	Inner Diameter	Working Pressure	Color	Pkg Qty	Package Type	Mating Fitting Series	Series	Parker Group	Inner Diameter Inch/mm	Mating End Fitting Series	Parker Division	Inner Diameter	Inch/Metric	Trade Name	Color	Hose Pressure Range	Hose Category	Hose Inner Tube Material	Minimum Bend Radius	Package Type	Maximum Operating Pressure	Cover Material	Minimum Operating Temperature	Specifications Met	Cover Structure	Hose Reinforcement Material	Outside Diameter	Cover Color	Weight	Inside Diameter	Maximum Operating Temperature	Compatible Fitting	Media	Tube Material
7031-50250	Backordered	342 in stock	$2.10/foot	FT	FT	1/2	500	Green	250	500 FT	0.5 Inch	250 PSI (17 bar)	Green	500	Reel	HY	7031	Fluid Connector	Inch	HY	Hose Products	0.5 Inch	Inch	GST® II	Green	Low	Air & Multipurpose
7031-7530450R	Backordered	Backordered	$3.44/foot	FT	FT	3/4	50	Green	300	50 FT	0.75 Inch	300 PSI (20 bar)	Green	50	Carton	HY	7031	Fluid Connector	Inch	HY	Hose Products	0.75 Inch	Inch	GST® II	Green	Low	Air & Multipurpose	Ethylene Propylene Diene Monomer (EPDM)	152.4 mm	Carton	20.7 bar	Ethylene Propylene Diene Monomer (EPDM)	-40 °C	ARPM Class C Tube	Smooth	4 Plies of Textile	29.4 mm	Green	0.17 kg/m	19.1 mm	212 °F	HY Series	Water
7031-75304R	Backordered	2039 in stock	$2.77/foot	FT	FT	3/4	350	Green	300	400 FT	0.75 Inch	300 PSI (20 bar)	Green	400	Reel	HY	7031	Fluid Connector	Inch	HY	Hose Products	0.75 Inch	Inch	GST® II	Green	Low	Air & Multipurpose	Black	152.4 mm	Reel	20.7 bar	Ethylene Propylene Diene Monomer (EPDM)	-40 °F	ARPM Class C Tube	Smooth	4 Plies of Textile	1.156 inch	Green	0.17 kg/m	3/4 inch	212 °F	HY Series	Water
7057-75304	Backordered	2488 in stock	$2.77/foot	FT	FT	3/4	350	Blue	300	400 FT	0.75 Inch	300 PSI (20 bar)	Blue	400	Reel	HY	7057	Fluid Connector	Inch	HY	Hose Products	0.75 Inch	Inch	GST® II	Blue	Low	Air & Multipurpose	ARPM Class C Oil Resistance	6 inch	Reel	20.7 bar	Ethylene Propylene Diene Monomer (EPDM)	-40 °C	ARPM Class C Tube	Smooth	4 Plies of Textile	1.156 inch	Blue	0.17 kg/m	3/4 inch	212 °F	HY Series	Mild Chemicals - Check your fluid compatibility with our catalogue chart.
7092-100200	254 in stock	12336 in stock	$3.33/foot	FT	FT	1	300	Red	200	300 FT	1 Inch	200 PSI (14 bar)	Red	300	Reel	HY	7092	Fluid Connector	Inch	HY	Hose Products	1 Inch	Inch	GST® II	Red	Low	Air & Multipurpose	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)	177.8 mm	Reel	200 psi	Ethylene Propylene Diene Monomer (EPDM)	-40 °C	ARPM Class C Tube	Smooth	2 Plies of Textile	35.7 mm	Red	0.47 lb/ft	1 inch	100 °C	HY Series	Water	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)
7092-100304	230 in stock	7852 in stock	$4.79/foot	FT	FT	1	300	Red	300	300 FT	1 Inch	300 PSI (20 bar)	Red	300	Reel	HY	7092	Fluid Connector	Inch	HY	Hose Products	1 Inch	Inch	GST® II	Red	Low	Air & Multipurpose	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)	8 inch	Reel	20.7 bar	Ethylene Propylene Diene Monomer (EPDM)	-40 °C	ARPM Class C Tube	Smooth	4 Plies of Textile	36.5 mm	Red	0.23 kg/m	25.4 mm	100 °C	HY Series	Water	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)
7092-10030450	Backordered	243 in stock	$5.94/foot	FT	FT	1	50	Red	300	50 FT	1 Inch	300 PSI (20 bar)	Red	50	Carton	HY	7092	Fluid Connector	Inch	HY	Hose Products	1 Inch	Inch	GST® II	Red	Low	Air & Multipurpose	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)	203.2 mm	Carton	20.7 bar	Ethylene Propylene Diene Monomer (EPDM)	-40 °C	ARPM Class C Tube	Smooth	2 Plies of Textile	36.5 mm	Red	0.53 lb/ft	25.4 mm	212 °F	HY Series	Water	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)
7092-125204	Backordered	10219 in stock	$6.43/foot	FT	FT	1-1/4	250	Red	200	200 FT	1.25 Inch	200 PSI (14 bar)	Red	200	Reel	HY	7092	Fluid Connector	Inch	HY	Hose Products	1.25 Inch	Inch	GST® II	Red	Low	Air & Multipurpose	Ethylene Propylene Diene Monomer (EPDM)	9 inch	Reel	13.8 bar	Ethylene Propylene Diene Monomer (EPDM)	-40 °F	ARPM Class C Tube	Smooth	4 Plies of Textile	1.781 inch	Red	0.77 lb/ft	1-1/4 inch	100 °C	HY Series	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)
7092-150204	67 in stock	5914 in stock	$7.62/foot	FT	FT	1-1/2	200	Red	200	200 FT	1.5 Inch	200 PSI (14 bar)	Red	200	Reel	43	7092	Fluid Connector	Inch	43	Hose Products	1.5 Inch	Inch	GST® II	Red	Low	Air & Multipurpose	ARPM Class C Oil Resistance	254 mm	Reel	200 psi	Ethylene Propylene Diene Monomer (EPDM)	-40 °C	ARPM Class C Tube	Smooth	4 Plies of Textile	51.6 mm	Red	0.38 kg/m	38.1 mm	100 °C	43 Series	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)
7092-150204100	Backordered	47 in stock	$9.42/foot	FT	FT	1-1/2	100	Red	200	100 FT	1.5 Inch	200 PSI (14 bar)	Red	100	Reel	43	7092	Fluid Connector	Inch	43	Hose Products	1.5 Inch	Inch	GST® II	Red	Low	Air & Multipurpose	Black	254 mm	Carton	200 psi	Ethylene Propylene Diene Monomer (EPDM)	-40 °C	ARPM Class C Tube	Smooth	4 Plies of Textile	2.031 inch	Red	0.84 lb/ft	1-1/2 inch	100 °C	43 Series	Water	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)
7092-15020450	Backordered	20 in stock	$9.42/foot	FT	FT	1-1/2	50	Red	200	50 FT	1.5 Inch	200 PSI (14 bar)	Red	50	Carton	43	7092	Fluid Connector	Inch	43	Hose Products	1.5 Inch	Inch	GST® II	Red	Low	Air & Multipurpose	Black (ARPM Class C Oil Resistance)	10 inch	Carton	200 psi	Ethylene Propylene Diene Monomer (EPDM)	-40 °C	ARPM Class C Tube	Smooth	4 Plies of Textile	2.031 inch	Red	0.84 lb/ft	38.1 mm	212 °F	43 Series	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)
7092-200154	8 in stock	3352 in stock	$11.63/foot	FT	FT	2	250	Red	200	150 FT	2 Inch	200 PSI (14 bar)	Red	150	Reel	43	7092	Fluid Connector	Inch	43	Hose Products	2 Inch	Inch	GST® II	Red	Low	Air & Multipurpose	Ethylene Propylene Diene Monomer (EPDM)	14 inch	Reel	200 psi	Ethylene Propylene Diene Monomer (EPDM)	-40 °F	ARPM Class C Tube	Smooth	4 Plies of Textile	2.550 inch	Red	0.51 kg/m	2 inch	100 °C	43 Series	Water	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)
7092-25200	50 in stock	14019 in stock	$0.86/foot	FT	FT	1/4	800	Red	200	800 FT	0.25 Inch	200 PSI (14 bar)	Red	800	Reel	HY	7092	Fluid Connector	Inch	HY	Hose Products	0.25 Inch	Inch	GST® II	Red	Low	Air & Multipurpose	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)	63.5 mm	Reel	13.8 bar	Ethylene Propylene Diene Monomer (EPDM)	-40 °C	ARPM Class C Tube	Smooth	2 Plies of Textile	0.500 inch	Red	0.09 lb/ft	6.4 mm	212 °F	HY Series	Air	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)
7092-25300	834 in stock	8423 in stock	$1.13/foot	FT	FT	1/4	800	Red	300	800 FT	0.25 Inch	300 PSI (20 bar)	Red	800	Reel	HY	7092	Fluid Connector	Inch	HY	Hose Products	0.25 Inch	Inch	GST® II	Red	Low	Air & Multipurpose	Black	83.8 mm	Reel	20.7 bar	Ethylene Propylene Diene Monomer (EPDM)	-40 °F	ARPM Class C Tube	Smooth	2 Plies of Textile	0.550 inch	Red	0.05 kg/m	6.4 mm	212 °F	HY Series	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)
7092-31200	Backordered	16 in stock	$1.19/foot	FT	FT	5/16	750	Red	200	750 FT	0.313 Inch	200 PSI (14 bar)	Red	750	Reel	HY	7092	Fluid Connector	Inch	HY	Hose Products	0.313 Inch	Inch	GST® II	Red	Low	Air & Multipurpose	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)	83.8 mm	Reel	13.8 bar	Ethylene Propylene Diene Monomer (EPDM)	-40 °C	ARPM Class C Tube	Smooth	2 Plies of Textile	15.1 mm	Red	0.12 lb/ft	5/16 inch	100 °C	HY Series	Air	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)
7092-31300	Backordered	2331 in stock	$1.46/foot	FT	FT	5/16	750	Red	300	750 FT	0.313 Inch	300 PSI (20 bar)	Red	750	Reel	HY	7092	Fluid Connector	Inch	HY	Hose Products	0.313 Inch	Inch	GST® II	Red	Low	Air & Multipurpose	Black (ARPM Class C Oil Resistance)	3.5 inch	Reel	20.7 bar	Ethylene Propylene Diene Monomer (EPDM)	-40 °C	ARPM Class C Tube	Smooth	2 Plies of Textile	15.9 mm	Red	0.06 kg/m	7.9 mm	100 °C	HY Series	Water	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)
7092-38200	1255 in stock	19897 in stock	$1.27/foot	FT	FT	3/8	700	Red	200	700 FT	0.375 Inch	200 PSI (14 bar)	Red	700	Reel	HY	7092	Fluid Connector	Inch	HY	Hose Products	0.375 Inch	Inch	GST® II	Red	Low	Air & Multipurpose	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)	3.5 inch	Reel	13.8 bar	Ethylene Propylene Diene Monomer (EPDM)	-40 °F	ARPM Class C Tube	Smooth	2 Plies of Textile	16.7 mm	Red	0.14 lb/ft	3/8 inch	212 °F	HY Series	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)
7092-3820050	Backordered	253 in stock	$1.57/foot	FT	FT	3/8	50	Red	200	50 FT	0.375 Inch	200 PSI (14 bar)	Red	50	Carton	HY	7092	Fluid Connector	Inch	HY	Hose Products	0.375 Inch	Inch	GST® II	Red	Low	Air & Multipurpose	Black	88.9 mm	Carton	13.8 bar	Ethylene Propylene Diene Monomer (EPDM)	-40 °C	ARPM Class C Tube	Smooth	2 Plies of Textile	16.7 mm	Red	0.14 lb/ft	9.5 mm	100 °C	HY Series	Water	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)
7092-38300	1435 in stock	27446 in stock	$1.50/foot	FT	FT	3/8	700	Red	300	700 FT	0.375 Inch	300 PSI (20 bar)	Red	700	Reel	HY	7092	Fluid Connector	Inch	HY	Hose Products	0.375 Inch	Inch	GST® II	Red	Low	Air & Multipurpose	Black	101.6 mm	Reel	300 psi	Ethylene Propylene Diene Monomer (EPDM)	-40 °C	ARPM Class C Tube	Smooth	2 Plies of Textile	0.688 inch	Red	0.07 kg/m	3/8 inch	212 °F	HY Series	Air	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)
7092-3830050	Backordered	Backordered	$1.85/foot	FT	FT	3/8	50	Red	300	50 FT	0.375 Inch	300 PSI (20 bar)	Red	50	Carton	HY	7092	Fluid Connector	Inch	HY	Hose Products	0.375 Inch	Inch	GST® II	Red	Low	Air & Multipurpose	ARPM Class C Oil Resistance	101.6 mm	Carton	20.7 bar	Ethylene Propylene Diene Monomer (EPDM)	-40 °C	ARPM Class C Tube	Smooth	2 Plies of Textile	17.5 mm	Red	0.16 lb/ft	9.5 mm	100 °C	HY Series	Water	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)
