High Flow, Valved, Hydraulic Quick Couplings - HP Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

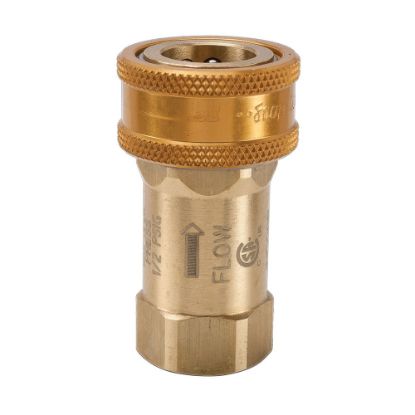

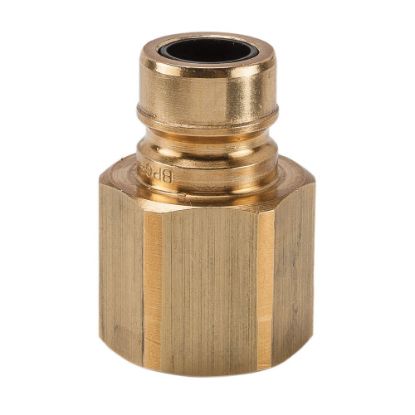

HP Series Couplers (hydraulic) 5000 psi connect with HP Series Nipples.
Parker's HP Series are double shut-off quick couplings with manual sleeves and poppet valves. Steel coupler sleeves and nipple bodies are heat treated to withstand pressure surges. End fitting configurations include female pipe and straight thread ORB.
Technical Characteristics:
• Sizes: 1” and 1-1/2””
• Material: Steel
• Port Ends: Female NPSF, Female ORB, Female NPTF
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
• Industrial
• Construction
• Mobile Equipment
Features/Benefits:
• Steel coupler sleeves and nipple bodies are heat treated to withstand pressure surges
• High flow with minimal pressure drop
Applications:
• Industrial hydraulic lines
• Construction mobile equipment
Read More...Parker's HP Series are double shut-off quick couplings with manual sleeves and poppet valves. Steel coupler sleeves and nipple bodies are heat treated to withstand pressure surges. End fitting configurations include female pipe and straight thread ORB.
Technical Characteristics:
• Sizes: 1” and 1-1/2””
• Material: Steel
• Port Ends: Female NPSF, Female ORB, Female NPTF
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
• Industrial
• Construction
• Mobile Equipment
Features/Benefits:
• Steel coupler sleeves and nipple bodies are heat treated to withstand pressure surges
• High flow with minimal pressure drop
Applications:
• Industrial hydraulic lines
• Construction mobile equipment
| Action | SKU | Availability | Partner Available | Price | UOM | Coupling Half | Connection Thread Size (inch) | Connection Type | Body Size | Plating Type | Maximum Operating Temperature | Minimum Operating Temperature | Body Material | Hex Size | Maximum Operating Pressure | Seal Material | Valve Type | Flow Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HP-1001-16FO | Backordered | 2 Limited Stock | $505.73/each | EA | Female Coupler | 1 5/16 - 12 | Female ORB | 1 | Zinc with clear trivalent chromate | 250 °F | -40 °F | Steel | 1.62 inch | 5000 psi | Nitrile | Poppet | 50 Gal/min | |
| HP-1001-16FP | Backordered | 9 in stock | $408.60/each | EA | Female Coupler | 1 - 11 1/2 | Female NPSF | 1 | Zinc with clear trivalent chromate | 250 °F | -40 °F | Steel | 1.62 inch | 5000 psi | Nitrile | Poppet | 50 Gal/min | |
| HP-1002-16FO | Backordered | 4 in stock | $401.99/each | EA | Male Nipple | 1 5/16 - 12 | Female ORB | 1 | Zinc with clear trivalent chromate | 250 °F | -40 °F | Steel | 1.62 inch | 5000 psi | Nitrile | Poppet | 50 Gal/min | |
| HP-1002-16FP | Backordered | 7 in stock | $303.17/each | EA | Male Nipple | 1 - 11 1/2 | Female NPSF | 1 | Zinc with clear trivalent chromate | 250 °F | -40 °F | Steel | 1.62 inch | 5000 psi | Nitrile | Poppet | 50 Gal/min | |
| HP-1501-24FP | 1 Limited Stock | 10 in stock | $643.40/each | EA | Female Coupler | 1 1/2 - 11 1/2 | Female NPTF | 1 1/2 | Zinc with clear trivalent chromate | 250 °F | -40 °F | Steel | 2.25 inch | 5000 psi | Nitrile | Poppet | 100 Gal/min | |
| HP-1502-24FP | 1 Limited Stock | 2 Limited Stock | $405.66/each | EA | Male Nipple | 1 1/2 - 11 1/2 | Female NPTF | 1 1/2 | Zinc with clear trivalent chromate | 250 °F | -40 °F | Steel | 2.25 inch | 5000 psi | Nitrile | Poppet | 100 Gal/min |
