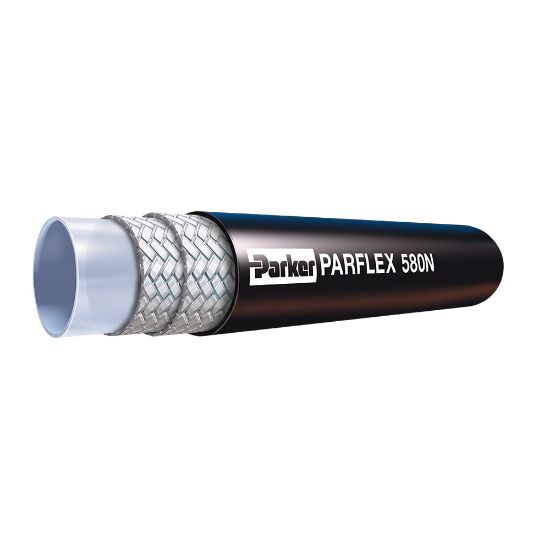

580N-12 - High Pressure Hose - 580N/588N

Name: 580N-12 - High Pressure Hose - 580N/588N
SKU: 580N-12
Price: 13.17 USD
Availability: InStock

The 580N/588N High Pressure Flexible Hose meets SAE 100R8 specifications and offers a smaller O.D. and lighter weight than the 100R2, replacing 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required.

Availability:

6 in stock

Wichita, KS

Partner Available:

487 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 580N-12

$13.17/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/4
Hose Type	General Purpose	Minimum Operating Temperature	-40 °F
Design Factor	4:1	Maximum Operating Temperature	212 °F
Cover Material	Polyurethane	Compatible Fitting	56 Series
Hose Inner Tube Material	Polyamide (PA)	Hose Reinforcement Material	Fiber
Minimum Bend Radius	8 inch	Size	-12
Inside Diameter	3/4 inch	Outside Diameter	1.150 inch
Media	Petroleum Hydraulic Fluids	Weight	0.35 kg/m
Maximum Operating Pressure	155 bar	Product Style	Standard
Specifications Met	DNG GL
