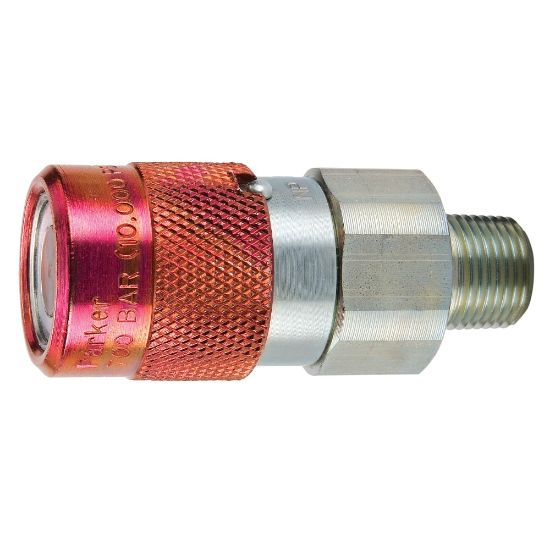

FH-371-6MP - High Pressure, HTMA, Non-Spill, Flat Face Quick Couplings with Sleeve Lock - FH Series

Name: FH-371-6MP - High Pressure, HTMA, Non-Spill, Flat Face Quick Couplings with Sleeve Lock - FH Series
SKU: FH-371-6MP
Price: 169.51 USD
Availability: InStock

Parker's high pressure non-spill, flat face hydraulic quick couplers are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Availability:

5 in stock

Kansas City, KS

Partner Available:

4 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU FH-371-6MP

$169.51/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size	3/8 inch
Coupling Half	Female Coupler	Connection Type	Male NPTF
Connection Thread Size	3/8 - 18	Hex Size	1.12 inch
Plating Type	Zinc with clear trivalent chromate, red finish on sleeve	Flow Rate	6.0 Gal/min
Seal Material	Nitrile	Maximum Operating Temperature	250.0 °F
Specifications Met	HTMA	Maximum Operating Pressure	10000.0 psi
Minimum Operating Temperature	-40.0 °F	Valve Type	Non-spill
Body Material	Steel

California Residents: Prop-65 Warning

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
