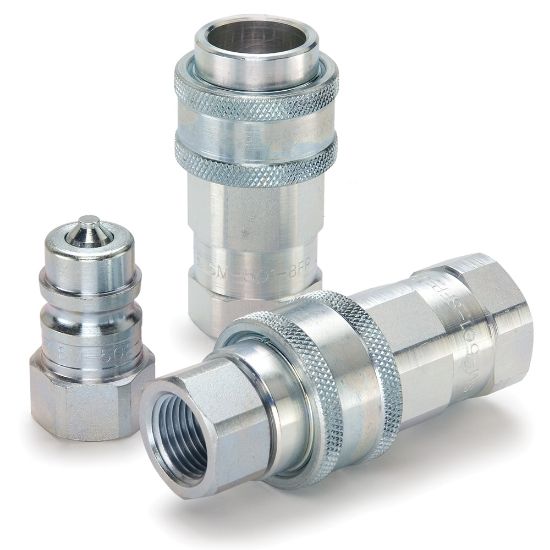

Picture of High Pressure, Hydraulic General Purpose Quick Couplings - SM Series - SM-251-4FP-B

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure, Hydraulic General Purpose Quick Couplings - SM Series - SM-251-4FP-B

Parker's general purpose quick couplers and nipples are ideal for use in hydraulic applications where fluid lines require fast and easy connection and disconnection.
Availability:
Backordered
SKU SM-251-4FP-B
$70.03
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEACoupling HalfFemale Coupler
Connection TypeFemale NPTFMaximum Operating Pressure1500 PSI
Flow Rate3 GAL/MINConnection Thread Size (inch)1/4 - 18
Body Size (inch)1/4Body MaterialBrass
Maximum Operating Temperature250 °FHex Size0.75
Minimum Operating Temperature-40 °FDivisionQuick Coupling Division
Seal MaterialNitrileApplicationGeneral Purpose
Plating Typen/aValve TypePoppet
Product TypeManual Connect
