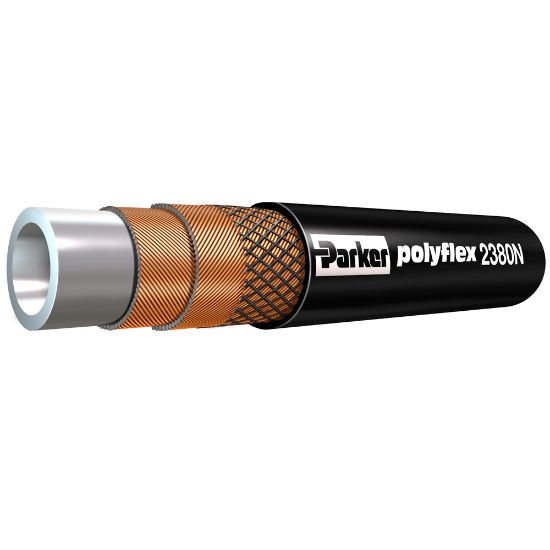

2380N-04V00 - High Pressure Hydraulic Hose - 2380N/2388N

Parker 2380N and 2388N high pressure hydraulic hoses feature low volumetric expansion and are available as a twinline hose. Ideal for oil and gas applications.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	2327 in stock

SKU 2380N-04V00

$10.93/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/4
Cover Color	Black	Maximum Working Pressure (psi)	10,150
Minimum Operating Temperature	-40 °F	Size	-4
Inside Diameter	1/4 inch	Specifications Met	N/A
Design Factor	4:1	Maximum Operating Temperature	100 °C
Minimum Bend Radius	2-3/4 inch	Cover Material	Polyurethane
Weight	0.27 kg/m	Media	Petroleum Hydraulic Fluids
Compatible Fitting	8X Series	Maximum Operating Pressure	700 bar
Outside Diameter	13.3 mm	Hose Inner Tube Material	Polyamide 12
Hose Reinforcement Material	2 Spirals and 2 Open Spirals of High Tensile Steel Wire
