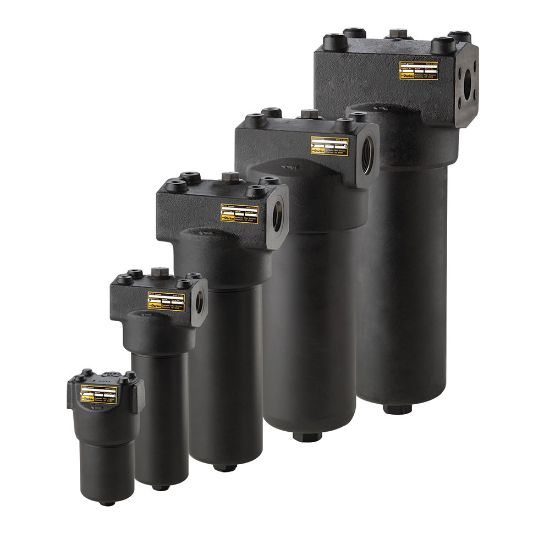

Picture of High Pressure Inline Filter WPF Series - WPF102QEBM2KS081

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure Inline Filter WPF Series - WPF102QEBM2KS081

The new industry standard in high pressure hydraulic filtration incorporating advanced features designed to improve system reliability. Allowable operating pressure of 7000 PSI/483 Bar and capable of flows up to 137 GPM/520 LPM depending on viscosity.
Availability:
Backordered
SKU WPF102QEBM2KS081
$653.85
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAFilter Element Type02Q Microglass
Flow Rate10 gpm (37.8 lpm)OptionsBypass
Indicator Type50 psi visualPort Connection TypeSAE-8
Bypass Valve Pressure Rating50 psi (3.5 bar)Seal MaterialNitrile
Seal MaterialNitrileHousing MaterialSG Iron head and forged steel bowl
Pressure Rating483 barPort TypeSAE-8
Indicator Pressure Setting7.7 barProduct TypeHydraulic Filter
DivisionEngine Mobile Hydraulic and Fuel Filtration DivisionFlow Rate37.8 L/min
OptionsBypassBypass Valve Pressure Rating3.5 bar
Filter Element TypeCorelessProduct StyleHydraulic Filter
For Fluid TypeMineral, Petroleum and Polyalphaolefin (PAO) based fluidsMaximum Operating Temperature135.0 °C
Weight9 lbCompatible Element941029Q
Mounting StyleInlineIndicator Type50 psi visual
