929BJ-4 - Static Dissipative Hose - 929BJ

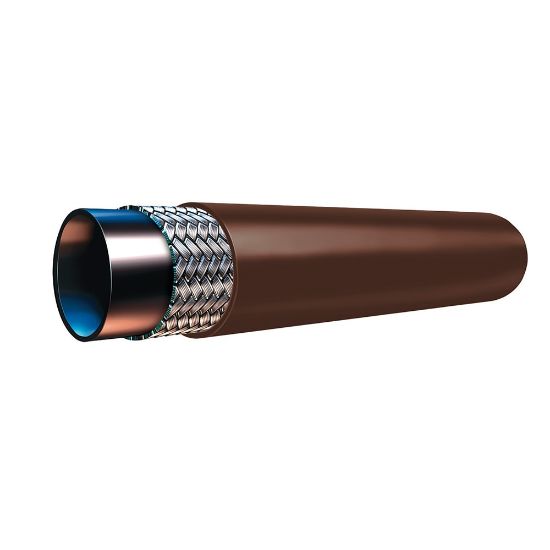

Parker's 929BJ hose features a static-dissipative PTFE core tube and a brown silicone, steam cleanable jacket to provide a smooth cover to protect the stainless steel wire reinforcement against wear, fraying and contaminants.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	692 in stock

SKU 929BJ-4

$30.04/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/16
Media	Air	Maximum Operating Pressure	3000 psi
Product Style	Static Dissipative	Size	-4
Hose Inner Tube Material	Polytetrafluoroethylene (PTFE)	Hose Reinforcement Material	Braid of 304 Stainless Steel
Maximum Operating Temperature	232 °C	Design Factor	4:1
Outside Diameter	0.580 inch	Minimum Bend Radius	51 mm
Minimum Operating Temperature	-65 °F	Weight	0.17 lb/ft
Inside Diameter	3/16 inch	Cover Material	Silicone
Compatible Fitting	91N Series	Specifications Met	SAE J517 and 100R1, Type 4B
Vacuum Pressure Rating	28 mm-Hg
