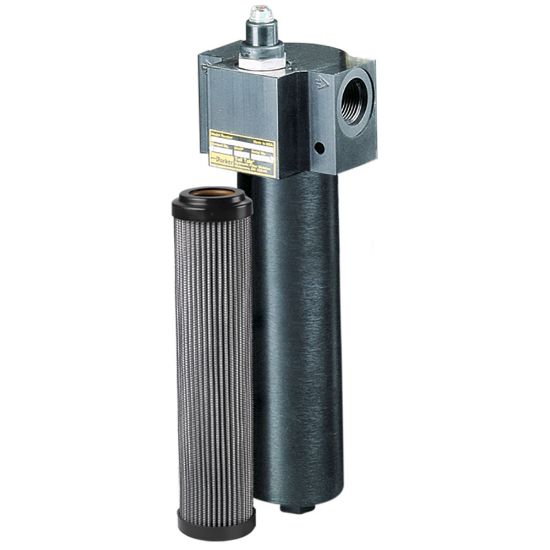

15P202QBE2KS121 - High Pressure Inline/Duplex Filter 15P/30P/30PD Series

The Parker 15P/30P Series is a high pressure all aluminum filter assembly that comes in a variety of options. The 15P/30P Series has a rated fatigue pressure of up to 2,000psi and flow rate up to 45gpm.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU 15P202QBE2KS121

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Options	None	Port Connection Type	SAE-12 ports
Micron Rating	02Q Microglass	Indicator Type	electrical/visual DIN 43650 style connection
Mounting Style	inline	Flow Rate	20 GPM (75 LPM)
Seal Material	Nitrile	Options	None
Filter Element Type	Cartridge	Port Type	SAE-12 ports
Bypass Valve Pressure Rating	50.0 psid	Maximum Operating Temperature	225.0 °F
Micron Rating	02Q Microglass	Product Style	Hydraulic Filter
For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258	Indicator Type	electrical/visual DIN 43650 style connection
Indicator Pressure Setting	50 psi	Weight	4.6 lb ( 2.1 kg)
Flow Rate	75.0 L/min	Compatible Element	932616Q
