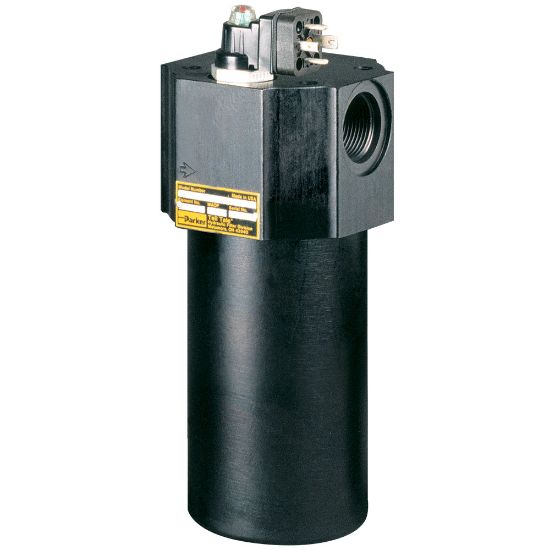

30P120QVM2SKX1 - High Pressure Inline/Duplex Filter 15P/30P/30PD Series

The Parker 15P/30P Series is a high pressure all aluminum filter assembly that comes in a variety of options. The 15P/30P Series has a rated fatigue pressure of up to 2,000psi and flow rate up to 45gpm.

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU 30P120QVM2SKX1

$813.11/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Options	None
Seal Material	Fluorocarbon	Micron Rating	20Q Microglass
Indicator Type	visual automatic reset-side mounted	Mounting Style	inline
Port Connection Type	manifold ports	Flow Rate	45 GPM (170 LPM)
Options	None	Seal Material	Fluorocarbon
Filter Element Type	Cartridge	Bypass Valve Pressure Rating	50.0 psid
Product Style	Hydraulic Filter	Micron Rating	20Q Microglass
Maximum Operating Temperature	135.0 °C	Port Type	manifold ports
For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258	Indicator Type	visual automatic reset-side mounted
Indicator Pressure Setting	50 psi	Weight	6.4 lb (2.9 kg)
Flow Rate	170.0 L/min	Compatible Element	933135Q
