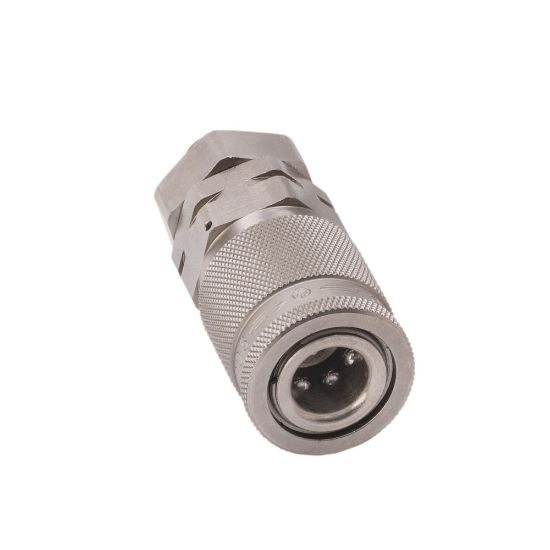

HP006-0-NFB - High Pressure Quick Couplings - Rogan Series

Quick couplings for quick and easy hose assembly for Parker UHP Hose . Couplings are available in a variety of connection styles with working pressures ranging from 15,000 psi to 30,000 psi.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU HP006-0-NFB

$588.96/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Coupler
Thread Type	Female	Connection Size (inch)	1/4" - 18
Flow Diameter (inch)	0.24	Connection Style	NPT
Hex Size	30.23 mm	Connection Type	Female Thread
Body Material	Alloy Steel	Maximum Operating Pressure	103 MPa
Materials of Construction	Alloy Steel	Flow Diameter	0.24 inch
Connection Size	1/4"-18 inch	Overall Length	3.3 inch
Coupling Half	Coupler
