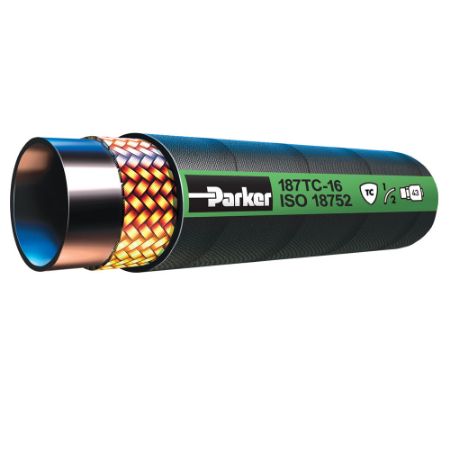

Hydraulic Constant Working Pressure Hose 1000 PSI - GlobalCore 187 Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The newest member of the GlobalCore hose product family, 187 high pressure hydraulic hose is engineered to meet and exceed ISO 18752 performance specifications. A product that’s unmatched in today’s marketplace, GlobalCore 187 hose is the first and only 1,000 PSI constant working pressure hydraulic hose offered in sizes from -8 through -48 (1/2” through 3” inner diameter). Tested to twice the requirements of the ISO 18752 standard, GlobalCore 187 hose is designed to excel in rugged environments and high impulse applications. Like other GlobalCore hoses, high performance 187 hose offers low force to flex and a superior bend radius. Constructed with a synthetic rubber inner tube for a wider range of fluid compatibilities, and reinforced with one- or two-braid steel wire, 187 hose is designed to be a robust and reliable hydraulic hose solution. Choose from three cover options — Standard, Tough, and SuperTough — to match the level of abrasion resistance needed for each application.
Markets:
• Transportation
• Military
• Construction
• Agriculture
• Grounds & Building Maintenance
• Waste & Refuse
• Material Handling
• Forestry
• Railroad
• Utility Equipment
• Personnel Lift Equipment
• Machine Tool
• Aftermarket
• Industrial
• Mining
Features/Benefits:
• Standard, ToughCover or SuperTough cover options to prevent abrasion
• Half SAE bend radius for ease of installation and low force to flex (up to -32)
• 1000 PSI constant working pressure in all sizes
• Exceeds ISO 18752 performance specification (AC and AS)
• Synthetic rubber inner tube provides a wider range of fluid compatibility
Applications:
• Petroleum base hydraulic fluids and lubricating oils
Compatible Fittings:
• 43 series fittings
| Action | SKU | Availability | Partner Available | Price | UOM | Hose I.D. (size) | Hose Cover Type | Minimum Operating Temperature | Maximum Operating Pressure | Minimum Bend Radius | Maximum Operating Temperature | Size | Weight | Media | Cover Material | Hose Cover Type | Inside Diameter | Outside Diameter | Compatible Fitting | Specifications Met | Vacuum Pressure Rating | Hose Inner Tube Material | Hose Reinforcement Material | Nominal Hose Inside Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187-10 | Backordered | Backordered | $6.12/foot | FT | -10 | Standard | -40 °F | 1000 psi | 3 inch | 100 °C | -10 | 0.49 kg/m | Petroleum Hydraulic Fluids (Petroleum Base) | Synthetic Rubber | Standard Cover | 5/8 inch | 0.930 inch | 43 Series | ISO 18752 | 609.6 mm-Hg | Synthetic Rubber | 1 Braid of Steel Wire | 16 mm | |
| 187-12 | Backordered | Backordered | $8.04/foot | FT | -12 | Standard | -40 °C | 7 MPa | 90 mm | 100 °C | -12 | 0.63 kg/m | Petroleum Hydraulic Fluids (Petroleum Base) | Synthetic Rubber | Standard Cover | 19 mm | 1.080 inch | 43 Series | ISO 18752 | 80 kPa | Synthetic Rubber | 1 Braid of Steel Wire | 19 mm | |
| 187-16 | Backordered | 13 in stock | $10.13/foot | FT | -16 | Standard | -40 °F | 1000 psi | 4.5 inch | 212 °F | -16 | 0.61 lb/ft | Lubricants (Oils) | Synthetic Rubber | Standard Cover | 1 inch | 36 mm | 43 Series | ISO 18752 | 24 Inch-Hg | Synthetic Rubber | 1 Braid of Steel Wire | 25 mm | |
| 187-20 | 64 in stock | 142 in stock | $21.20/foot | FT | -20 | Standard | -40 °F | 1000 psi | 140 mm | 212 °F | -20 | 1.24 lb/ft | Petroleum Hydraulic Fluids (Petroleum Base) | Synthetic Rubber | Standard Cover | 1-1/4 inch | 1.750 inch | 43 Series | ISO 18752 | 60 kPa | Synthetic Rubber | 2 Braids of Steel Wire | 31 mm | |
| 187-24 | 12 in stock | 13 in stock | $30.26/foot | FT | -24 | Standard | -40 °C | 70 bar | 9.75 inch | 212 °F | -24 | 1.96 kg/m | Petroleum Hydraulic Fluids (Petroleum Base) | Synthetic Rubber | Standard Cover | 38 mm | 2.040 inch | 43 Series | ISO 18752 | 18 Inch-Hg | Synthetic Rubber | 2 Braids of Steel Wire | 38 mm | |
| 187-32 | Backordered | 962 in stock | $37.44/foot | FT | -32 | Standard | -40 °F | 70 bar | 318 mm | 100 °C | -32 | 1.75 lb/ft | Petroleum Hydraulic Fluids (Petroleum Base) | Synthetic Rubber | Standard Cover | 2 inch | 65 mm | 43 Series | ISO 18752 | 457.2 mm-Hg | Synthetic Rubber | 2 Braids of Steel Wire | 51 mm | |
| 187-40 | Backordered | Backordered | $79.39/foot | FT | -40 | Standard | -40 °F | 70 bar | 508 mm | 212 °F | -40 | 2.04 lb/ft | Petroleum Hydraulic Fluids (Petroleum Base) | Synthetic Rubber | Standard Cover | 63.5 mm | 75 mm | 43 Series (2 piece) | ISO 18752 | 18 Inch-Hg | Synthetic Rubber | 2 Braids of Steel Wire | 63 mm | |
| 187-8 | Backordered | Backordered | $4.43/foot | FT | -8 | Standard | -40 °F | 1000 psi | 2-1/2 inch | 212 °F | -8 | 0.43 kg/m | Lubricants (Oils) | Synthetic Rubber | Standard Cover | 12.5 mm | 0.810 inch | 43 Series | ISO 18752 | 24 Inch-Hg | Synthetic Rubber | 1 Braid of Steel Wire | 12 mm | |
| 187ST-10 | Backordered | Backordered | $9.35/foot | FT | -10 | SuperTough | -40 °C | 1000 psi | 3 inch | 100 °C | -10 | 0.33 lb/ft | Lubricants (Oils) | Synthetic Rubber Super Abrasion Resistant | SuperTough | 5/8 inch | 24 mm | 43 Series | ISO 18752 | 80 kPa | Synthetic Rubber | 1 Braid of Steel Wire | 16 mm | |
| 187ST-12 | Backordered | Backordered | $12.30/foot | FT | -12 | SuperTough | -40 °F | 7 MPa | 90 mm | 212 °F | -12 | 0.63 kg/m | Petroleum Hydraulic Fluids (Petroleum Base) | Synthetic Rubber Super Abrasion Resistant | SuperTough | 19 mm | 27 mm | 43 Series | ISO 18752 | 609.6 mm-Hg | Synthetic Rubber | 1 Braid of Steel Wire | 19 mm | |
| 187ST-16 | Backordered | 86 in stock | $16.24/foot | FT | -16 | SuperTough | -40 °F | 70 bar | 4.5 inch | 125 °C | -16 | 0.61 lb/ft | Petroleum Hydraulic Fluids (Petroleum Base) | Synthetic Rubber Super Abrasion Resistant | SuperTough | 1 inch | 1.410 inch | 43 Series | ISO 18752 | 24 Inch-Hg | Synthetic Rubber | 1 Braid of Steel Wire | 25 mm | |
| 187ST-20 | Backordered | Backordered | $32.42/foot | FT | -20 | SuperTough | -40 °C | 1000 psi | 140 mm | 257 °F | -20 | 1.85 kg/m | Petroleum Hydraulic Fluids (Petroleum Base) | Synthetic Rubber Super Abrasion Resistant | SuperTough | 1-1/4 inch | 44 mm | 43 Series | ISO 18752 | 60 kPa | Synthetic Rubber | 2 Braids of Steel Wire | 31 mm | |
| 187ST-24 | Backordered | 84 in stock | $121.71/foot | FT | -24 | SuperTough | -40 °F | 7 MPa | 9.75 inch | 257 °F | -24 | 1.32 lb/ft | Lubricants (Oils) | Synthetic Rubber Super Abrasion Resistant | SuperTough | 38 mm | 52 mm | 43 Series | ISO 18752 | 60 kPa | Synthetic Rubber | 2 Braids of Steel Wire | 38 mm | |
| 187ST-32 | 145 in stock | 1388 in stock | $57.25/foot | FT | -32 | SuperTough | -40 °F | 70 bar | 318 mm | 257 °F | -32 | 2.60 kg/m | Petroleum Hydraulic Fluids (Petroleum Base) | Synthetic Rubber Super Abrasion Resistant | SuperTough | 51 mm | 65 mm | 43 Series | ISO 18752 | 18 Inch-Hg | Synthetic Rubber | 2 Braids of Steel Wire | 51 mm | |
| 187ST-40 | Backordered | 85 in stock | $121.38/foot | FT | -40 | SuperTough | -40 °C | 7 MPa | 508 mm | 212 °F | -40 | 3.04 kg/m | Lubricants (Oils) | Synthetic Rubber Super Abrasion Resistant | SuperTough | 63.5 mm | 2.970 inch | 43 Series | ISO 18752 | 18 Inch-Hg | Synthetic Rubber | 2 Braids of Steel Wire | 63 mm | |
| 187ST-8 | Backordered | Backordered | $6.78/foot | FT | -8 | SuperTough | -40 °F | 70 bar | 65 mm | 212 °F | -8 | 0.43 kg/m | Lubricants (Oils) | Synthetic Rubber Super Abrasion Resistant | SuperTough | 12.5 mm | 0.810 inch | 43 Series | ISO 18752 | 609.6 mm-Hg | Synthetic Rubber | 1 Braid of Steel Wire | 12 mm | |
| 187TC-10 | Backordered | 284 in stock | $7.20/foot | FT | -10 | ToughCover | -40 °C | 70 bar | 3 inch | 100 °C | -10 | 0.49 kg/m | Lubricants (Oils) | Synthetic Rubber Abrasion Resistant | Tough Cover | 5/8 inch | 0.930 inch | 43 Series | ISO 18752 | 24 Inch-Hg | Synthetic Rubber | 1 Braid of Steel Wire | 16 mm | |
| 187TC-12 | Backordered | 569 in stock | $9.45/foot | FT | -12 | ToughCover | -40 °C | 1000 psi | 90 mm | 212 °F | -12 | 0.63 kg/m | Petroleum Hydraulic Fluids (Petroleum Base) | Synthetic Rubber Abrasion Resistant | Tough Cover | 3/4 inch | 27 mm | 43 Series | ISO 18752 | 80 kPa | Synthetic Rubber | 1 Braid of Steel Wire | 19 mm | |
| 187TC-20 | 314 in stock | 1249 in stock | $24.95/foot | FT | -20 | ToughCover | -40 °C | 7 MPa | 140 mm | 125 °C | -20 | 1.24 lb/ft | Petroleum Hydraulic Fluids (Petroleum Base) | Synthetic Rubber Abrasion Resistant | Tough Cover | 31.5 mm | 44 mm | 43 Series | ISO 18752 | 60 kPa | Synthetic Rubber | 2 Braids of Steel Wire | 31 mm | |
| 187TC-24 | 160 in stock | 1048 in stock | $35.60/foot | FT | -24 | ToughCover | -40 °C | 1000 psi | 248 mm | 257 °F | -24 | 1.32 lb/ft | Lubricants (Oils) | Synthetic Rubber Abrasion Resistant | Tough Cover | 38 mm | 2.040 inch | 43 Series | ISO 18752 | 457.2 mm-Hg | Synthetic Rubber | 2 Braids of Steel Wire | 38 mm |
