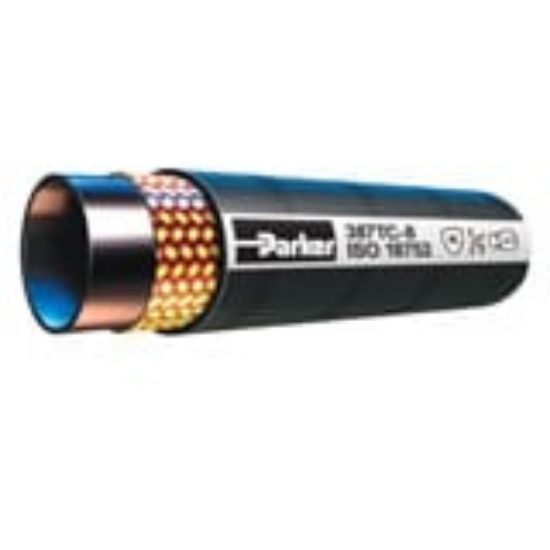

Hydraulic Constant Working Pressure Hose 3000 PSI - GlobalCore 387 Hose - 387ST-10

Name: Hydraulic Constant Working Pressure Hose 3000 PSI - GlobalCore 387 Hose - 387ST-10
SKU: 387ST-10

Part of Parker’s GlobalCore constant working pressure hose line, lightweight and flexible 387 hoses consistently deliver 3,000 PSI performance across markets and across the globe.

Availability:

Backordered

SKU 387ST-10

$12.40

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-10
Hose Cover Type	SuperTough	Minimum Operating Temperature	-40 °F
Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.	Division	Hose Products Division
Maximum Operating Temperature	125 °C	Minimum Bend Radius	100 mm
Size	-10	Weight	0.49 kg/m
Cover Material	Synthetic Rubber Super Abrasion Resistant	Hose Cover Type	SuperTough
Inside Diameter	5/8 inch	Compatible Fitting	43 Series
Hose Inner Tube Material	Synthetic Rubber	Hose Reinforcement Material	2 Braids of Steel Wire
Nominal Hose Inside Diameter	16 mm	Application	Petroleum Base Hydraulic Fluids
Maximum Operating Pressure	21 MPa	Media	Petroleum Hydraulic Fluids
Outside Diameter	23.9 mm	Specifications Met	ISO 18752, Type AC
