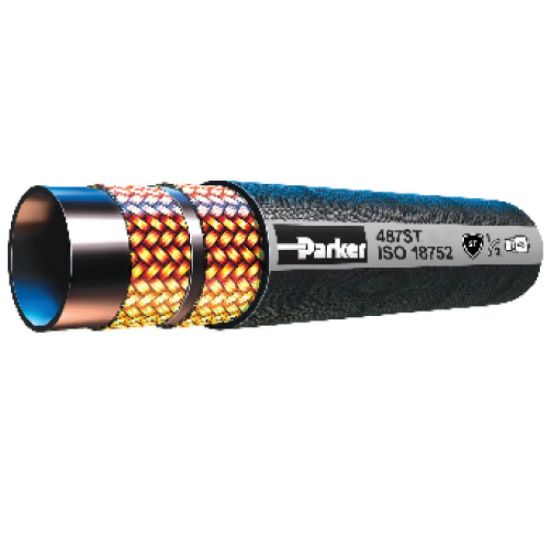

487ST-12 - Hydraulic Constant Working Pressure Hose 4000 PSI - GlobalCore 487 Hose

Parker’s 487 GlobalCore hose offers high performance, low-force-to-flex, and constant working pressures of 4,000 psi.

Availability:	Backordered
Partner Available:	2425 in stock

SKU 487ST-12

$22.41/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-12
Hose Cover Type	SuperTough	Minimum Operating Temperature	-40 °C
Minimum Bend Radius	4-3/4 inch	Size	-12
Inside Diameter	19 mm	Cover Material	Synthetic Rubber Super Abrasion Resistant
Compatible Fitting	43 Series	Hose Inner Tube Material	Synthetic Rubber
Hose Reinforcement Material	2 Braids of Steel Wire	Maximum Operating Temperature	257 °F
Media	Petroleum Hydraulic Fluids	Maximum Operating Pressure	280 bar
Weight	0.58 lb/ft	Outside Diameter	27.8 mm
Specifications Met	ISO 18752, Type AC	Nominal Hose Inside Diameter	20 mm
