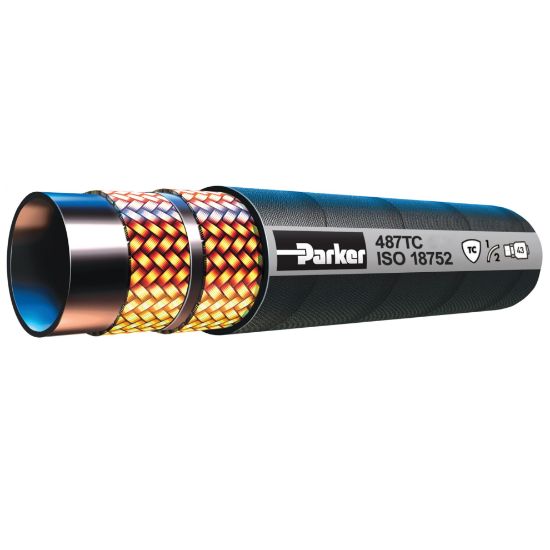

Hydraulic Constant Working Pressure Hose 4000 PSI - GlobalCore 487 Hose - 487TC-4

Name: Hydraulic Constant Working Pressure Hose 4000 PSI - GlobalCore 487 Hose - 487TC-4
SKU: 487TC-4

Parker’s 487 GlobalCore hose offers high performance, low-force-to-flex, and constant working pressures of 4,000 psi.

Availability:

Backordered

SKU 487TC-4

$5.54

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-4
Hose Cover Type	ToughCover	Minimum Operating Temperature	-40 °C
Division	Hose Products Division	Maximum Operating Temperature	125 °C
Size	-4	Weight	0.20 lb/ft
Cover Material	Synthetic Rubber Abrasion Resistant	Compatible Fitting	43 Series
Hose Inner Tube Material	Synthetic Rubber	Hose Reinforcement Material	2 Braids of Steel Wire
Application	Petroleum Base Hydraulic Fluids	Nominal Hose Inside Diameter	6 mm
Media	Petroleum Hydraulic Fluids	Inside Diameter	6.3 mm
Minimum Bend Radius	50 mm	Maximum Operating Pressure	28 MPa
Specifications Met	ISO 18752, Type AC	Outside Diameter	13.1 mm
