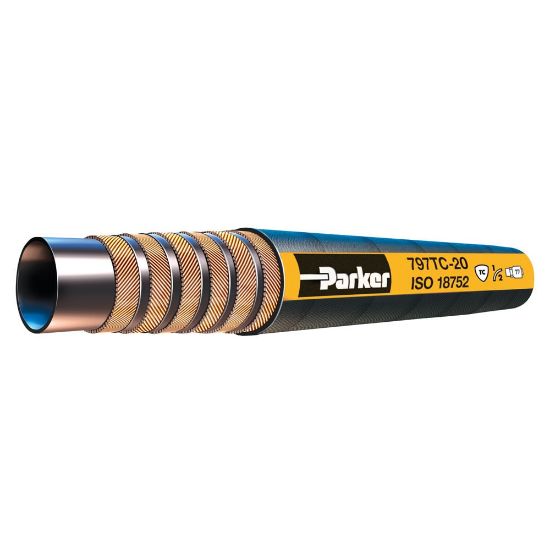

Picture of Hydraulic Constant Working Pressure Hose 6000 PSI - GlobalCore 797 Hose - 797ST-20

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Hydraulic Constant Working Pressure Hose 6000 PSI - GlobalCore 797 Hose - 797ST-20

Part of the GlobalCore line of robust yet lightweight hydraulic hose, Parker’s 797 hose is an easy-to-bend, easier-to-install 6000 PSI constant working pressure hose.
Availability:
Backordered
SKU 797ST-20
$126.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (size)-20
Hose Cover TypeSuperToughMaximum Operating Temperature125 °C
Cover MaterialSynthetic Rubber Abrasion ResistantNominal Hose Inside Diameter31 mm
ApplicationLubricating OilsMediaLubricants
Specifications MetISO 18752, Type DCWeight2.89 kg/m
Maximum Operating Pressure42 MPaHose Inner Tube MaterialProprietary Synthetic Rubber Compound
Compatible Fitting77 SeriesDivisionHose Products Division
Minimum Operating Temperature-40 °FHose Reinforcement Material4 or 6 Spirals of Steel Wire
Size-20Outside Diameter1.770 inch
Inside Diameter1-1/4 inchMinimum Bend Radius8-3/4 inch
