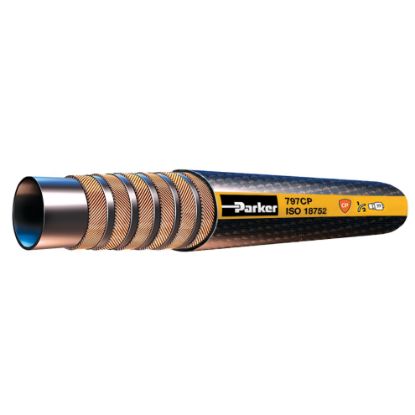

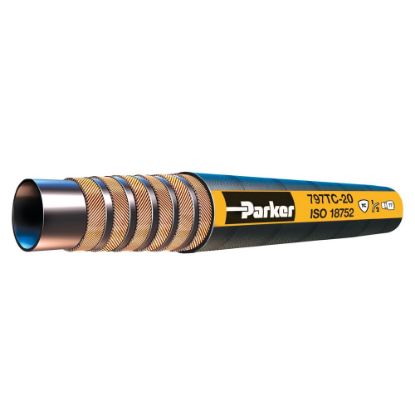

Hydraulic Constant Working Pressure Hose 6000 PSI - GlobalCore 797 Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s 797 hose, within the GlobalCore product line, was designed to deliver consistency and reliability with a constant working pressure of 6,000 PSI in all sizes. The 797 hose is made with Compact Spiral technology making it light, durable, and easily bent making installation easier and quicker. The 797 hose is designed, built and tested to the ISO 18752 performance specifications. Sizes range from ¼” to 2” in diameter with different cover options available for various markets.
Markets:
• Military
• Construction
• Forestry
• Oil Field Service
• Industrial
• Mining
Features/Benefits:
• Standard, ToughCover, SuperTough and Critical Protection cover options to prevent abrasion
• Half SAE bend radius for ease of installation and low force to flex
• 30% smaller O.D. compared to standard SAE spiral hose
• 6,000 PSI constant working pressure in all sizes
• Less hose weight than SAE spiral
• Twice the impulse/life for a longer useful life of the hose
• Flex impulse tested to provide a superior hose in both performance and service life
Applications:
• Petroleum base hydraulic fluids and lubricating oils
Compatible Fittings:
• 43 series fittings (for -4 to -6)
• 77 series fittings (for -8 to -32)
Read More...Markets:
• Military
• Construction
• Forestry
• Oil Field Service
• Industrial
• Mining
Features/Benefits:
• Standard, ToughCover, SuperTough and Critical Protection cover options to prevent abrasion
• Half SAE bend radius for ease of installation and low force to flex
• 30% smaller O.D. compared to standard SAE spiral hose
• 6,000 PSI constant working pressure in all sizes
• Less hose weight than SAE spiral
• Twice the impulse/life for a longer useful life of the hose
• Flex impulse tested to provide a superior hose in both performance and service life
Applications:
• Petroleum base hydraulic fluids and lubricating oils
Compatible Fittings:
• 43 series fittings (for -4 to -6)
• 77 series fittings (for -8 to -32)
| Action | SKU | Availability | Partner Available | Price | UOM | Hose I.D. (size) | Hose Cover Type | Minimum Operating Temperature | Maximum Operating Temperature | Inside Diameter | Size | Cover Material | Nominal Hose Inside Diameter | Media | Compatible Fitting | Specifications Met | Hose Inner Tube Material | Weight | Outside Diameter | Hose Reinforcement Material | Minimum Bend Radius | Maximum Operating Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 797-20 | Backordered | 400 in stock | $82.41/foot | FT | -20 | Standard | -40 °C | 212 °F | 1-1/4 inch | -20 | Synthetic Rubber | 31 mm | Petroleum Hydraulic Fluids | 77 Series | ISO 18752, Type BC | Proprietary Synthetic Rubber Compound | 1.95 lb/ft | 44.9 mm | 4 or 6 Spirals of Steel Wire | 8-3/4 inch | 42 MPa | |
| 797-24 | Backordered | 48 in stock | $93.44/foot | FT | -24 | Standard | -40 °C | 100 °C | 38 mm | -24 | Synthetic Rubber | 38 mm | Petroleum Hydraulic Fluids | 77 Series | ISO 18752, Type BC | Proprietary Synthetic Rubber Compound | 3.96 kg/m | 52.8 mm | 4 or 6 Spirals of Steel Wire | 305 mm | 42 MPa | |
| 797-32 | Backordered | Backordered | $117.15/foot | FT | -32 | Standard | -40 °F | 212 °F | 51 mm | -32 | Synthetic Rubber | 51 mm | Petroleum Hydraulic Fluids | 77 Series | ISO 18752, Type BC | Proprietary Synthetic Rubber Compound | 4.37 lb/ft | 2.660 inch | 4 or 6 Spirals of Steel Wire | 15 inch | 42 MPa | |
| 797CP-20 | Backordered | Backordered | $131.31/foot | FT | -20 | Critical Protection | -40 °F | 125 °C | 31.5 mm | -20 | Synthetic Rubber Abrasion Resistant | 1 1/4 inch | Lubricants | 77 Series | MSHA TC, ST & CP covers only | Proprietary Synthetic Rubber Compound | 2.89 kg/m | 44.9 mm | 4 or 6 Spirals of Steel Wire | 8.75 inch | 420 bar | |
| 797ST-10 | Backordered | 2060 in stock | $106.65/foot | FT | -10 | SuperTough | -40 °C | 257 °F | 16 mm | -10 | Synthetic Rubber Abrasion Resistant | 16 mm | Petroleum Hydraulic Fluids | 77 Series | ISO 18752, Type DC | Proprietary Synthetic Rubber Compound | 0.54 lb/ft | 23.9 mm | 4 or 6 Spirals of Steel Wire | 4-1/2 inch | 42 MPa | |
| 797ST-12 | Backordered | 849 in stock | $57.60/foot | FT | -12 | SuperTough | -40 °C | 257 °F | 3/4 inch | -12 | Synthetic Rubber Abrasion Resistant | 19 mm | Lubricants | 77 Series | ISO 18752, Type DC | Proprietary Synthetic Rubber Compound | 1.16 kg/m | 1.1 inch | 4 or 6 Spirals of Steel Wire | 5-1/4 inch | 42 MPa | |
| 797ST-16 | Backordered | 1383 in stock | $70.80/foot | FT | -16 | SuperTough | -40 °F | 257 °F | 25 mm | -16 | Synthetic Rubber Abrasion Resistant | 25 mm | Lubricants | 77 Series | ISO 18752, Type DC | Proprietary Synthetic Rubber Compound | 1.74 kg/m | 35.7 mm | 4 or 6 Spirals of Steel Wire | 6-1/2 inch | 42 MPa | |
| 797ST-20 | Backordered | 260 in stock | $126.00/foot | FT | -20 | SuperTough | -40 °F | 125 °C | 1-1/4 inch | -20 | Synthetic Rubber Abrasion Resistant | 31 mm | Lubricants | 77 Series | ISO 18752, Type DC | Proprietary Synthetic Rubber Compound | 2.89 kg/m | 1.770 inch | 4 or 6 Spirals of Steel Wire | 8-3/4 inch | 42 MPa | |
| 797ST-24 | Backordered | Backordered | $375.96/foot | FT | -24 | SuperTough | -40 °C | 257 °F | 38 mm | -24 | Synthetic Rubber Abrasion Resistant | 38 mm | Lubricants | 77 Series | ISO 18752, Type CC | Proprietary Synthetic Rubber Compound | 2.66 lb/ft | 52.8 mm | 4 or 6 Spirals of Steel Wire | 305 mm | 420 bar | |
| 797ST-32 | Backordered | 80 in stock | $471.37/foot | FT | -32 | SuperTough | -40 °F | 257 °F | 2 inch | -32 | Synthetic Rubber Abrasion Resistant | 51 mm | Lubricants | 77 Series | ISO 18752, Type CC | Proprietary Synthetic Rubber Compound | 4.37 lb/ft | 2.660 inch | 4 or 6 Spirals of Steel Wire | 380 mm | 420 bar | |
| 797ST-8 | Backordered | 844 in stock | $29.22/foot | FT | -8 | SuperTough | -40 °C | 257 °F | 12.5 mm | -8 | Synthetic Rubber Abrasion Resistant | 12 mm | Petroleum Hydraulic Fluids | 77 Series | ISO 18752, Type DC | Proprietary Synthetic Rubber Compound | 0.45 lb/ft | 0.830 inch | 4 or 6 Spirals of Steel Wire | 100 mm | 6000 psi | |
| 797TC-20 | 862 in stock | 6996 in stock | $96.95/foot | FT | -20 | ToughCover | -40 °C | 125 °C | 1-1/4 inch | -20 | Synthetic Rubber Abrasion Resistant | 31 mm | Lubricants | 77 Series | ISO 18752, Type DC | Proprietary Synthetic Rubber Compound | 1.95 lb/ft | 44.9 mm | 4 or 6 Spirals of Steel Wire | 8-3/4 inch | 420 bar | |
| 797TC-24 | 473 in stock | 4635 in stock | $109.93/foot | FT | -24 | ToughCover | -40 °F | 257 °F | 38 mm | -24 | Synthetic Rubber Abrasion Resistant | 38 mm | Petroleum Hydraulic Fluids | 77 Series | ISO 18752, Type CC | Proprietary Synthetic Rubber Compound | 3.96 kg/m | 52.8 mm | 4 or 6 Spirals of Steel Wire | 12 inch | 6000 psi | |
| 797TC-32 | 180 in stock | 988 in stock | $137.84/foot | FT | -32 | ToughCover | -40 °F | 125 °C | 2 inch | -32 | Synthetic Rubber Abrasion Resistant | 51 mm | Petroleum Hydraulic Fluids | 77 Series | ISO 18752, Type CC | Proprietary Synthetic Rubber Compound | 4.37 lb/ft | 2.660 inch | 4 or 6 Spirals of Steel Wire | 15 inch | 420 bar |
