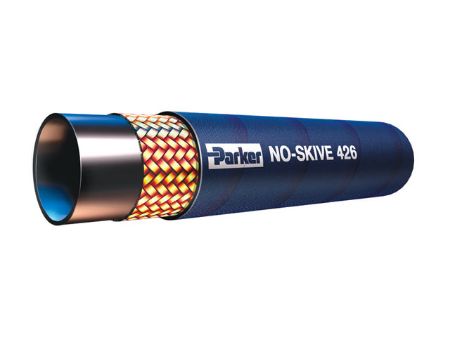

Hydraulic Industry Standard High-Temperature Hose 375-2750 PSI – 426 Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's 426 hose is a hydraulic industry standard hose that has a pressure range of 375-2750 PSI, which is designed for high-temperature applications. The 426 hose is designed, built, and tested to meet SAE J517 100R1AT / SAE J1942 specifications. Sizes range from ¼” to 2” in diameter to fit the requirements of various markets.

Markets:

• Transportation

• Military

• Construction

• Agriculture

• Grounds & Building Maintenance

• Material Handling

Features/Benefits:

• Meets SAE J517 100R1AT / SAE J1942 specifications

• The distinctive blue cover, MSHA accepted, indicates high temperature rating

• Compatible with temperatures up to 302 ͦF

Applications:

• Petroleum base hydraulic fluids and lubricating oils

Compatible Fittings:

• 43 series fittings

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	UOM	Hose I.D. (size)	Maximum Operating Temperature	Inside Diameter	Compatible Fitting	Hose Reinforcement Material	Nominal Hose Inside Diameter	Maximum Operating Pressure	Media	Hose Inner Tube Material	Cover Material	Specifications Met	Minimum Bend Radius	Weight	Outside Diameter	Minimum Operating Temperature	Pkg Qty	Inner Diameter	Material	Pkg Qty/UOM	Working Pressure	Parker Group	Inch/Metric	Parker Division	Inner Diameter Inch/mm	Inner Diameter	Material	Working Pressure Range	Application	Hose Pressure Range	Hose Category	Series	Distinct Properties
426-20	Backordered	725 in stock	$35.57/foot	FT	FT	-20	302 °F	1-1/4 inch	43 Series	1 Braid of Steel Wire	31 mm	4.3 MPa	Petroleum Hydraulic Fluids	PKR® Rubber	MSHA Approved	USCG HF	16-1/2 inch	1.40 kg/m	45 mm	-46 °C	50	1.25 Inch	Rubber	50 FT	625 PSI (40 bar)	Fluid Connector	Inch	Hose Products	Inch	1.25 Inch	Rubber	500 to 999 PSI (34 to 69 bar	Hydraulic	Medium	Hydraulic Industry Standard	426	High Temperature
426-24	1 Limited Stock	609 in stock	$44.78/foot	FT	FT	-24	302 °F	1-1/2 inch	43 Series	1 Braid of Steel Wire	38 mm	500 psi	Lubricants	PKR® Rubber	MSHA Approved	SAE J1942	500 mm	1.46 kg/m	51 mm	-50 °F	50	1.5 Inch	Rubber	50 FT	500 PSI (30 bar)	Fluid Connector	Inch	Hose Products	Inch	1.5 Inch	Rubber	500 to 999 PSI (34 to 69 bar	Hydraulic	Medium	Hydraulic Industry Standard	426	High Temperature
426-32	Backordered	789 in stock	$140.83/foot	FT	FT	-32	150 °C	51 mm	43 Series	1 Braid of Steel Wire	51 mm	2.6 MPa	Lubricants	PKR® Rubber	PKR® Rubber	SAE J1942	630 mm	1.46 lb/ft	64 mm	-50 °F	50	2 Inch	Rubber	50 FT	375 PSI (30 bar)	Fluid Connector	Inch	Hose Products	Inch	2 Inch	Rubber	250 to 499 PSI (17 to 34 bar)	Hydraulic	Medium	Hydraulic Industry Standard	426	High Temperature
426-4	Backordered	358 in stock	$7.05/foot	FT	FT	-4	150 °C	1/4 inch	43 Series	1 Braid of Steel Wire	6 mm	19.2 MPa	Lubricants	PKR® Rubber	PKR® Rubber	ABS	4 inch	0.16 lb/ft	0.530 inch	-50 °F	450	0.25 Inch	Rubber	450 FT	2750 PSI (190 bar)	Fluid Connector	Inch	Hose Products	Inch	0.25 Inch	Rubber	2000 to 2999 PSI ( 138 to 207 bar)	Hydraulic	Medium	Hydraulic Industry Standard	426	High Temperature
426-6	Backordered	Backordered	$7.96/foot	FT	FT	-6	302 °F	10 mm	43 Series	1 Braid of Steel Wire	10 mm	2250 psi	Petroleum Hydraulic Fluids	PKR® Rubber	PKR® Rubber	SAE 100R1, Type AT	125 mm	0.23 lb/ft	0.680 inch	-50 °F	300	0.375 Inch	Rubber	300 FT	2250 PSI (160 bar)	Fluid Connector	Inch	Hose Products	Inch	0.375 Inch	Rubber	2000 to 2999 PSI ( 138 to 207 bar)	Hydraulic	Medium	Hydraulic Industry Standard	426	High Temperature
426-8	Backordered	227 in stock	$8.53/foot	FT	FT	-8	150 °C	12.5 mm	43 Series	1 Braid of Steel Wire	12 mm	2000 psi	Lubricants	PKR® Rubber	MSHA Approved	USCG HF	7 inch	0.29 lb/ft	0.810 inch	-50 °F	400	0.5 Inch	Rubber	400 FT	2000 PSI (140 bar)	Fluid Connector	Inch	Hose Products	Inch	0.5 Inch	Rubber	2000 to 2999 PSI ( 138 to 207 bar)	Hydraulic	Medium	Hydraulic Industry Standard	426	High Temperature
