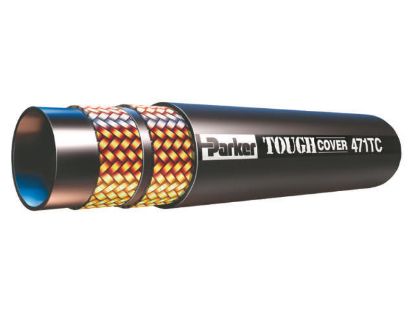

Hydraulic Industry Standard Hose 2500-5800 PSI – 471 Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 471 hose is a hydraulic industry standard hose that has a pressure range of 2500-5800 PSI, with a synthetic rubber inner tube which provides wide fluid compatibility. The 471 hose is designed, built, and tested to meet ISO 11237 Type 2SC, SAE J1942, and EN 857 Type 2SC specifications. The two-wire braided construction offers more flexibility than the standard spiral counterpart in order to fit your needs. Sizes range from ¼” to 1” in diameter with different cover options available for various markets.
Markets:
• Transportation
• Military
• Agriculture
• Forestry
• Utility Equipment
• Waste & Refuse
• Material Handling
• Industrial
Features/Benefits:
• ToughCover or SuperTough cover options to prevent abrasion
• Half SAE bend radius for ease of installation and low force to flex
• 2500-5800 PSI working pressure in different sizes
• 2-wire braided compact construction offers more flexibility
• Smaller O.D. for ease of installation
Applications:
• Petroleum base hydraulic fluids and lubricating oils
Compatible Fittings:
• 43 series fittings
Read More...Markets:
• Transportation
• Military
• Agriculture
• Forestry
• Utility Equipment
• Waste & Refuse
• Material Handling
• Industrial
Features/Benefits:
• ToughCover or SuperTough cover options to prevent abrasion
• Half SAE bend radius for ease of installation and low force to flex
• 2500-5800 PSI working pressure in different sizes
• 2-wire braided compact construction offers more flexibility
• Smaller O.D. for ease of installation
Applications:
• Petroleum base hydraulic fluids and lubricating oils
Compatible Fittings:
• 43 series fittings
| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Hose I.D. (size) | Hose Cover Type | Minimum Operating Temperature | Maximum Operating Temperature | Minimum Bend Radius | Compatible Fitting | Hose Inner Tube Material | Hose Reinforcement Material | Nominal Hose Inside Diameter | Inside Diameter | Media | Cover Material | Weight | Outside Diameter | Specifications Met | Vacuum Pressure Rating | Maximum Operating Pressure | Inner Diameter | Material | Pkg Qty/UOM | Pkg Qty | Working Pressure | Parker Group | Inch/Metric | Parker Division | Inner Diameter | Inner Diameter Inch/mm | Material | Working Pressure Range | Application | Hose Pressure Range | Hose Category | Distinct Properties | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 471ST-10 | Backordered | 74 in stock | $14.47/foot | FT | -10 | Super Tough Cover | -40 °F | 100 °C | 100 mm | 43 Series | Synthetic Rubber | 2 Braids of Steel Wire | 16 mm | 16 mm | Lubricants | MSHA Approved | 0.44 lb/ft | 0.940 inch | ISO 11237, Type 2SC | 95 kPa | 25 MPa | |||||||||||||||||||
| 471ST-12 | Backordered | 763 in stock | $20.00/foot | FT | -12 | Super Tough Cover | -40 °F | 100 °C | 120 mm | 43 Series | Synthetic Rubber | 2 Braids of Steel Wire | 19 mm | 19 mm | Petroleum Hydraulic Fluids | Synthetic Rubber Abrasion Resistant | 0.58 lb/ft | 1.090 inch | EN 857, Type 2SC | 24 Inch-Hg | 3125 psi | |||||||||||||||||||
| 471ST-16 | Backordered | 175 in stock | $25.65/foot | FT | -16 | Super Tough Cover | -40 °F | 100 °C | 6 inch | 43 Series | Synthetic Rubber | 2 Braids of Steel Wire | 25 mm | 1 inch | Lubricants | MSHA Approved | 1.17 kg/m | 35 mm | EN 857, Type 2SC | 80 kPa | 17.5 MPa | |||||||||||||||||||
| 471ST-4 | Backordered | 1685 in stock | $8.70/foot | FT | -4 | Super Tough Cover | -40 °C | 212 °F | 50 mm | 43 Series | Synthetic Rubber | 2 Braids of Steel Wire | 6 mm | 6.3 mm | Petroleum Hydraulic Fluids | Synthetic Rubber Abrasion Resistant | 0.30 kg/m | 0.510 inch | ISO 11237, Type 2SC | 28 Inch-Hg | 5800 psi | |||||||||||||||||||
| 471ST-6 | Backordered | 973 in stock | $9.63/foot | FT | -6 | Super Tough Cover | -40 °F | 100 °C | 2-1/2 inch | 43 Series | Synthetic Rubber | 2 Braids of Steel Wire | 10 mm | 3/8 inch | Petroleum Hydraulic Fluids | Synthetic Rubber Abrasion Resistant | 0.42 kg/m | 0.680 inch | ISO 11237, Type 2SC | 95 kPa | 5000 psi | |||||||||||||||||||
| 471ST-8 | Backordered | 1244 in stock | $11.47/foot | FT | -8 | Super Tough Cover | -40 °C | 212 °F | 3-1/2 inch | 43 Series | Synthetic Rubber | 2 Braids of Steel Wire | 12 mm | 1/2 inch | Petroleum Hydraulic Fluids | Synthetic Rubber Abrasion Resistant | 0.52 kg/m | 20 mm | ISO 11237, Type 2SC | 28 Inch-Hg | 4250 psi | |||||||||||||||||||
| 471TC-10 | Backordered | 4699 in stock | $10.87/foot | FT | FT | -10 | Tough Cover | -40 °C | 100 °C | 100 mm | 43 Series | Synthetic Rubber | 2 Braids of Steel Wire | 16 mm | 16 mm | Lubricants | Synthetic Rubber Abrasion Resistant | 0.66 kg/m | 24 mm | DNV | 95 kPa | 3625 psi | 0.625 Inch | Rubber | 275 FT | 275 | 3625 PSI (250 bar) | Fluid Connector | Inch | Hose Products | 0.625 Inch | Inch | Rubber | 3000 to 3999 PSI (207 to 276 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Tough Cover | 471TC | |
| 471TC-12 | Backordered | 10746 in stock | $14.04/foot | FT | FT | -12 | Tough Cover | -40 °C | 100 °C | 120 mm | 43 Series | Synthetic Rubber | 2 Braids of Steel Wire | 19 mm | 3/4 inch | Petroleum Hydraulic Fluids | MSHA Approved | 0.58 lb/ft | 28 mm | ABS | 80 kPa | 21.5 MPa | 0.75 Inch | Rubber | 230 FT | 230 | 3125 PSI (220 bar) | Fluid Connector | Inch | Hose Products | 0.75 Inch | Inch | Rubber | 3000 to 3999 PSI (207 to 276 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Tough Cover | 471TC | |
| 471TC-16 | Backordered | 2675 in stock | $18.35/foot | FT | FT | -16 | Tough Cover | -40 °C | 212 °F | 150 mm | 43 Series | Synthetic Rubber | 2 Braids of Steel Wire | 25 mm | 25 mm | Lubricants | MSHA Approved | 0.79 lb/ft | 35 mm | ISO 11237, Type 2SC | 80 kPa | 2500 psi | 1 Inch | Rubber | 125 FT | 125 | 2500 PSI (170 bar) | Fluid Connector | Inch | Hose Products | 1 Inch | Inch | Rubber | 2000 to 2999 PSI ( 138 to 207 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Tough Cover | 471TC | |
| 471TC-4 | Backordered | 20530 in stock | $5.93/foot | FT | FT | -4 | Tough Cover | -40 °C | 212 °F | 50 mm | 43 Series | Synthetic Rubber | 2 Braids of Steel Wire | 6 mm | 6.3 mm | Petroleum Hydraulic Fluids | Synthetic Rubber Abrasion Resistant | 0.20 lb/ft | 13 mm | SAE J1942 | 28 Inch-Hg | 40 MPa | 0.25 Inch | Rubber | 450 FT | 450 | 5800 PSI (400 bar) | Fluid Connector | Inch | Hose Products | 0.25 Inch | Inch | Rubber | > 5000 PSI (345 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Tough Cover | 471TC | |
| 471TC-6 | Backordered | 24246 in stock | $6.92/foot | FT | FT | -6 | Tough Cover | -40 °F | 100 °C | 2-1/2 inch | 43 Series | Synthetic Rubber | 2 Braids of Steel Wire | 10 mm | 3/8 inch | Lubricants | Synthetic Rubber Abrasion Resistant | 0.28 lb/ft | 17 mm | ABS | 28 Inch-Hg | 35 MPa | 0.375 Inch | Rubber | 350 FT | 350 | 5000 PSI (340 bar) | Fluid Connector | Inch | Hose Products | 0.375 Inch | Inch | Rubber | > 5000 PSI (345 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Tough Cover | 471TC | |
| 471TC-8 | Backordered | 19161 in stock | $8.26/foot | FT | FT | -8 | Tough Cover | -40 °C | 100 °C | 90 mm | 43 Series | Synthetic Rubber | 2 Braids of Steel Wire | 12 mm | 12.5 mm | Petroleum Hydraulic Fluids | MSHA Approved | 0.35 lb/ft | 20 mm | DNV | 28 Inch-Hg | 4250 psi | 0.5 Inch | Rubber | 400 FT | 400 | 4250 PSI (290 bar) | Fluid Connector | Inch | Hose Products | 0.5 Inch | Inch | Rubber | 4000 to 4999 PSI (276 to 345 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Tough Cover | 471TC |
